Building stone, lathing, plastering, and tiling, common brickwork, ornamental brickwork and terra cotta : lighting fixtures, use and design of lighting fixtures, architectural design (1909)
International Correspondence Schools · Scranton : International Textbook Co. · leaf 240

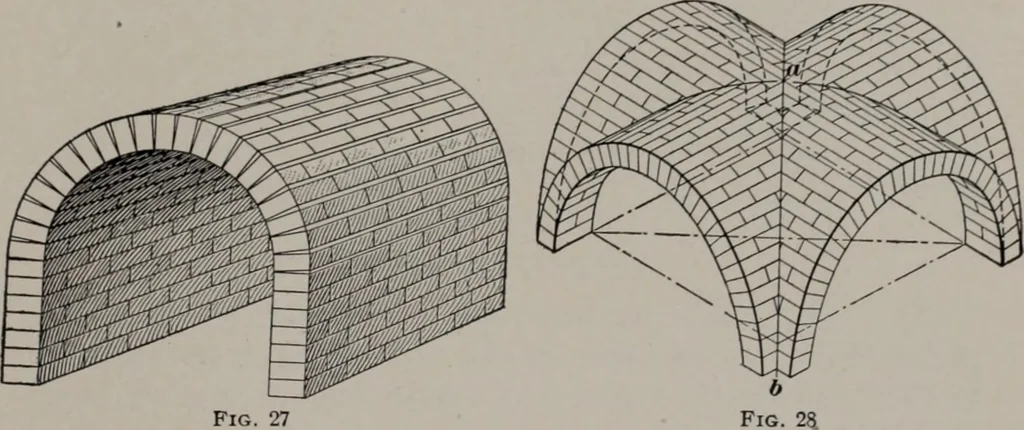

Fig. 26 would show inside the building. Then, also, the crown ofthe arch would have to be held back in place to prevent itsfalling forwards into the street. The best method, therefore,when it is absolutely necessary to use such an arch, is to carrythe load of the superimposed brickwork on hidden… … Fig. 27 the same manner as arches, with the additional precaution thatthe bricks are bonded longitudinally, as shown in the figure. 34. Groined Vaults.—An example of an intersect-ing:, or groined,vault is shown in „. Fig. 28. This style ofvault is often used,although it probablycannot be built as…
Building · Building materials · Architectural design · Lighting, Architectural and decorative
