Building stone, lathing, plastering, and tiling, common brickwork, ornamental brickwork and terra cotta : lighting fixtures, use and design of lighting fixtures, architectural design (1909)
International Correspondence Schools · Scranton : International Textbook Co. · leaf 299

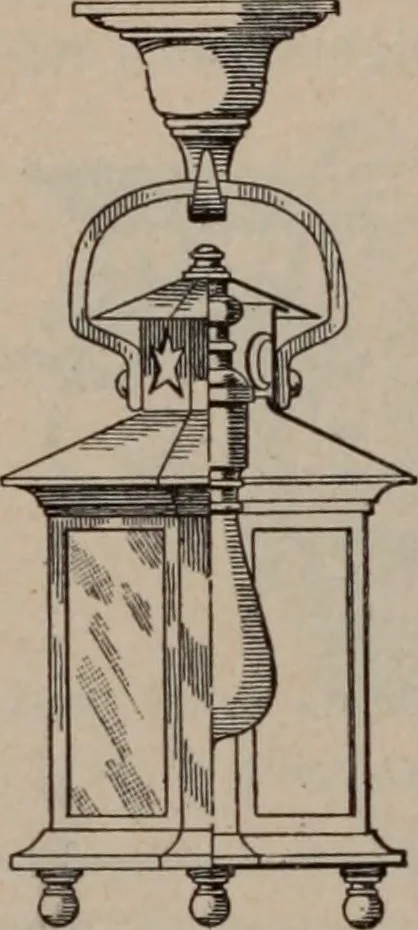

-iron ceiling fixture hav-ing all parts square in sectionis illustrated in Fig. 51. Theconstruction employs a can-opy with a hook fitting a, adiamond-shaped loop, abody, four hook arms onwhich hammered-iron husksb are suspended by means oflinks, and one center light.The diamond loop is weldedto the… … Fig. 52 the hook arms are provided with a fitting to which the ham-mered husks are connected. The centerlight is supported by a link fitting thatscrews to the body. The whole fixture isheld in position by an iron pipe that con-nects with the insulating joint and the hookfitting under the canopy.…
