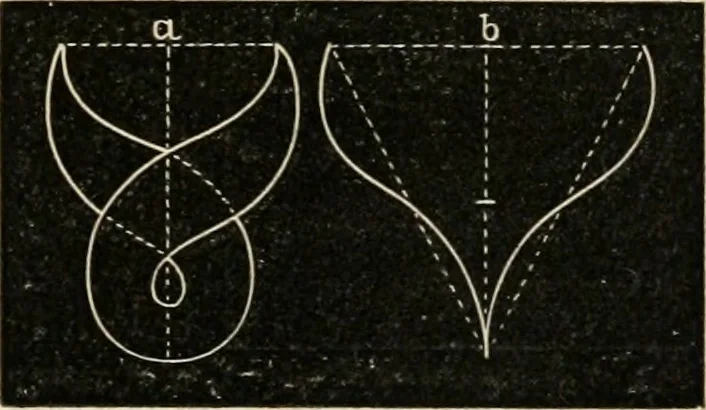

DRAWING-BOOK EXERCISE XXX. Abstract Curves. Directions.—(a). In tlie centre of the allotted space drawa vertical line tlueeinches long, and divideit into thirds. Throughthe upper end of this linedraw a horizontal linetwo inches long, extend-ing equally on eitherside of the vertical line.AVith these… … 114 TEACHERS MANUAL. {h). Instcail of tlie rurvcs at o, tliose at b may be drawn.In this rase jnakn the horizontal line, ilrawn through the topof the vertical line, of the same len;;th as the latter. Add thetwo ohlique lines; halve them; and through the points ofdivision draw the curves. See that…
