Teachers' manual for freehand drawing in Intermediate schools : intended to accompany the drawing-books for intermediate schools (1878)
Smith, Walter, 1836-1886 · Toronto, A. Miller · leaf 259

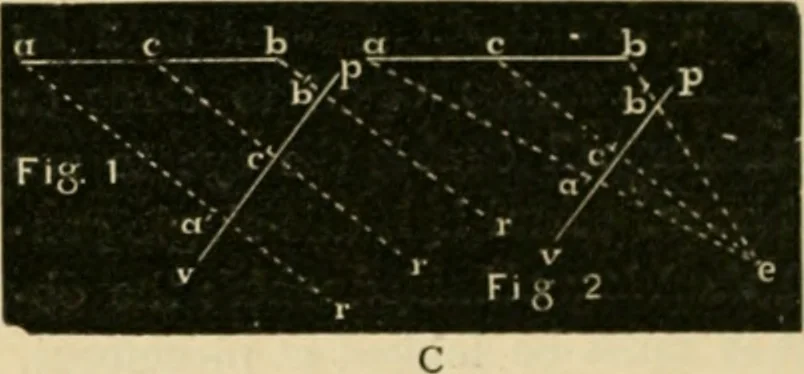

drawing on a transparent vertical plane as al-ready described, all lines converge. The Effect of Foreshortening. The effects of distance having been studied, it isnow necessary to consider foreshortening, the onlyother element in perspective. Something has al- 256 TEACHERS MANUAL. … read} been said of this on pp. 91, 04, to which jonare referred. Divide a lino ah into two oqnal parts, as shown in Fig. 1, cut C.Siii)poso this lineto be viewed ob-liquel}, with theeye at an infinitedistance, as inorthographic projection. The rays of light pro-ceeding from the points a, t>, and…
Drawing
Internet Archive · University of Toronto Libraries · Public Domain Mark 1.0. Free to use for anything.
