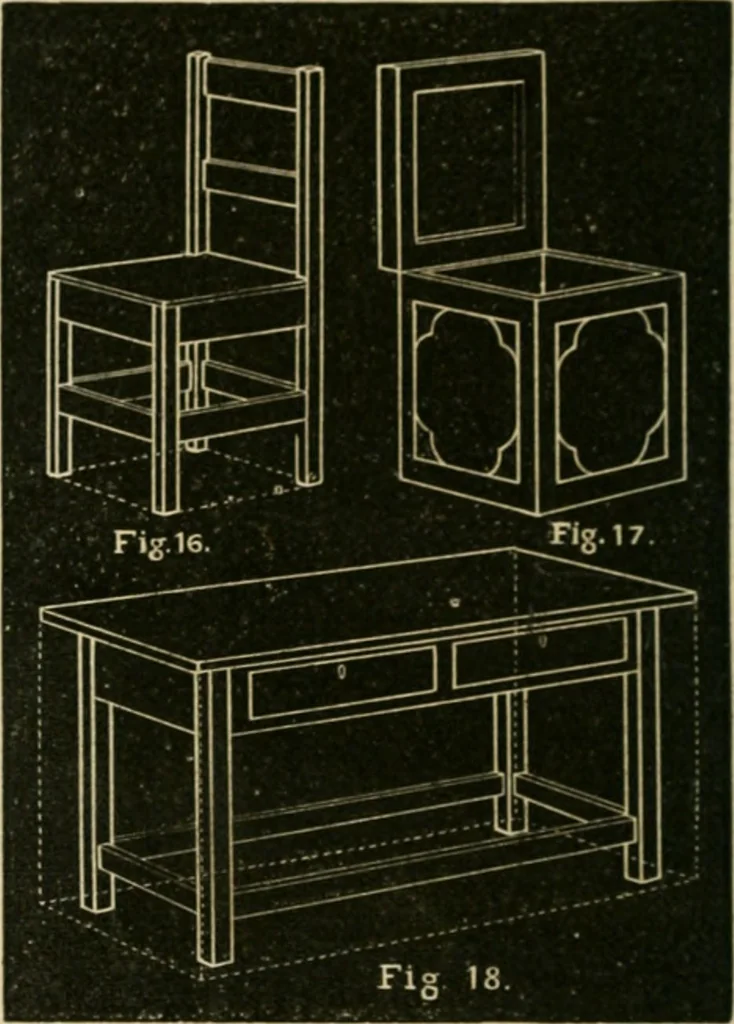

owance is to be madefor foreshortening. See pp. 255-200. Draw in the order ofthe numerals : 1 2 the nearest edge of the cube, 1 3 towardsthe right, and 1 5 towards the left; then 2 4 and 2 6 pointingupwards more than 1 3 and 1 5, so as to make 3 4 shorter than1 2, though they are actually of the… … Chair, Box, and Table : Figs. 16, 17, 18. DrRECTioNs FOR FiGs. 1(), 17, AND 18. — The cubes andparallelopipedon of tlie last exercises are converted into ob-jects of utility. Draw the cubes somewhat smaller than theywere drawn in the last exercise, but make the parallelo-piliedon of just the same…
