Teachers' manual for freehand drawing in Intermediate schools : intended to accompany the drawing-books for intermediate schools (1878)
Smith, Walter, 1836-1886 · Toronto, A. Miller · leaf 290

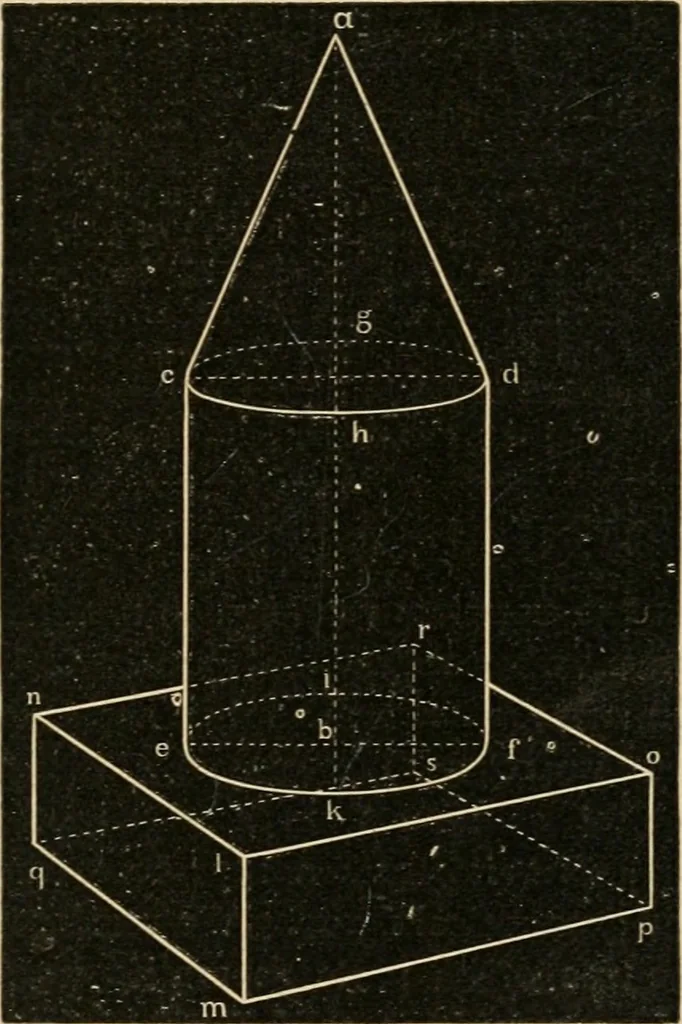

t-lessons. A skeleton cube, orparallelopipcdon, which can be quickly made ofAviro, will be of much assi.stance in .sliowing how theinvisible edges run. Tliesc skeleton forms willgreatly help tlie learner in making his first drawingsfrom the actual rectangular solids, as they willena))le him to… … Cone, Cylinder, and Square Plinth Combined: Fig. 20. Directions for Fio. 20. — Draw the cone and cylinderfirst, and tlien the square plinth on wliii-h the cylinder rests.Draw the straight lines in the order of the letters, and thenthe enrves through the points, indicated by the letters. This…
Drawing
Internet Archive · University of Toronto Libraries · Public Domain Mark 1.0. Free to use for anything.
