Calculations in cotton weaving : with worked examination papers (1903)
Holmes, James · England: Lupton Bros. · leaf 50

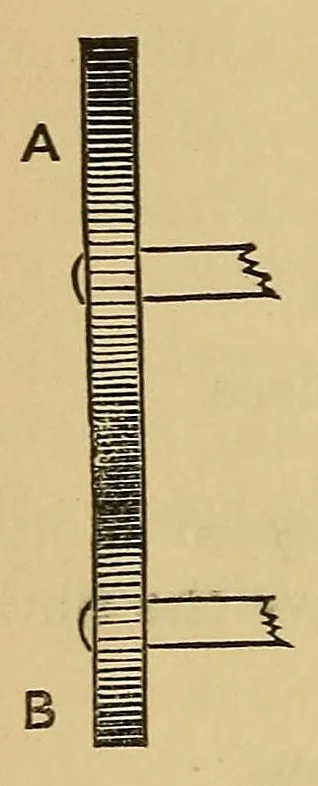

46 LOOM CALCULATIONS. drives a smaller wheel of 40 teeth B (fig. 5). One com- plete revolution of A takes B twice round. If a wheel C is introduced, as in fig. 6, it makes no difference to the speed of B. FiG. 6. Fig. 7. Fig. 5. … 5 B If two wheels are introduced (fig. 7), and they are both on the same stud, one of them, say the wheel C of 20 teeth in gear with the driver A of 80 teeth, also the wheel D of 30 teeth in gear with the driven wheel B of 40 teeth. To find the speed of B in relation to the speed of A the…
Cotton weaving
Internet Archive · Claire T. Carney Library, University of Massachusetts Dartmouth · Public domain (published before 1931). Free to use for anything.
