Bradbury, F. (Fred) · Halifax : F. King · leaf 272

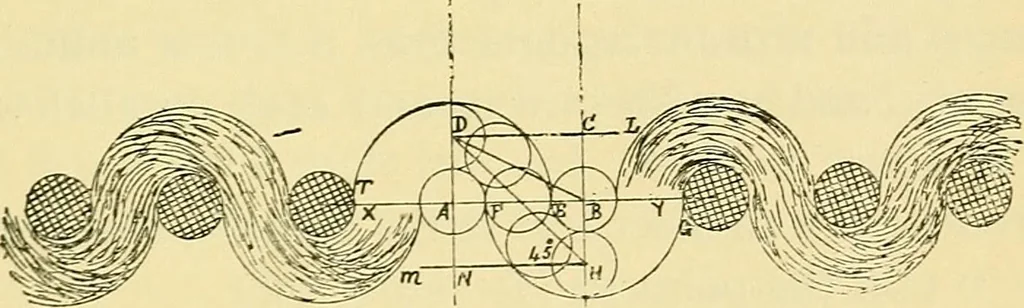

hreads of one set than of theother set, warp or weft, than would be obtained by theapplication of the principle involved in formulaXXXV. previously demonstrated. Warp Straight, Weft Bending, and Vice Versa. In proceeding, we shall now consider the principleunderlying the construction of those… … Fig. 8. An examination of the construction of this diagramnot only shows the warp threads to lie in a perfectlystraight line, while the weft does all the bending, butit also reveals the average angle of inclination to be45-, e.g. Take any point x and draw from x a straightline X Y, but unlimited…
Textile fabrics
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
