Cambria steel; a handbook of information relating to structural steel manufactured by the Cambria Steel Co. (1903)
Cambria Steel Co · Philadelphia : Press of MacCalla & company, inc. · leaf 158

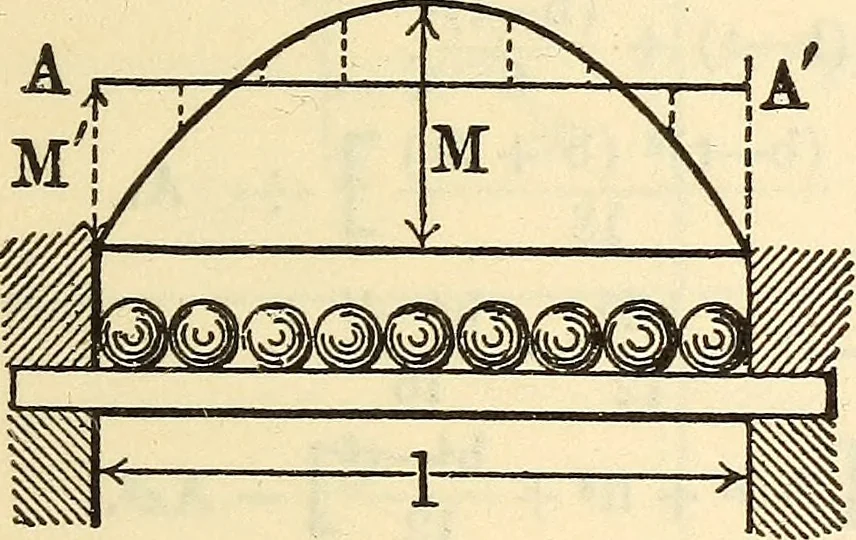

oad only, M= Total Bending Moment, in inch-lbs. M^i, Mp = Bending Moments, in inch-lbs., due to Weights Wj and P respectively. I = Moment of Inertia, in inches^. 1 = Length of Span, in inches. E = Modulus of Elasticity, in lbs., persquare inch = 29000000 for steel. Wg = Total Safe Load, in lbs.,… … Diagram for Total Load:—DrawWlparabola having M = -^. Also A A o parallel to base and at a distance WlM = ^pr-. The Vertical distances between the parabola and line A Aare the moments for correspondingpoints on beam. Safe Superimposed Load, in lbs., uni-formly distributed, Wg = f Wg •— Wg. Distance…
Steel, Structural · Building, Iron and steel · Building
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
