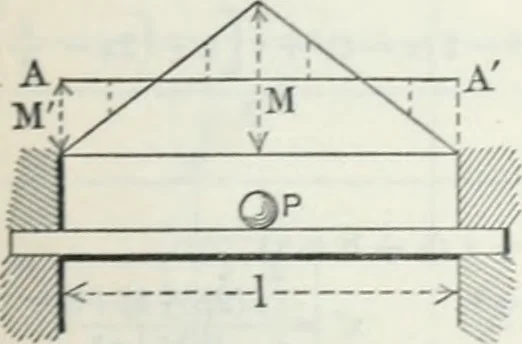

ical distances between the parabola and line A Aare the moments for correspondingpoints on beam. Safe Superimposed Load, in lbs., uni-formly distributed, W„ = § WB — Wi. Distance of points of contra-flexurefrom supports = .21131. Maximum Bending Moment at pointsWI (Wi + W8) 112 Bending Moment at… … Diagram for Superimposed Load:—PIDraw triangle having M = — • Also 4A A parallel to base and at a distance PIM = -jr- The Vertical distances be-tween the triangle and line A A arethe moments forcorres ponding pointson beam. Diagram for Dead Load similar toCase (8). Safe Superimposed Load, in lbs.,…
