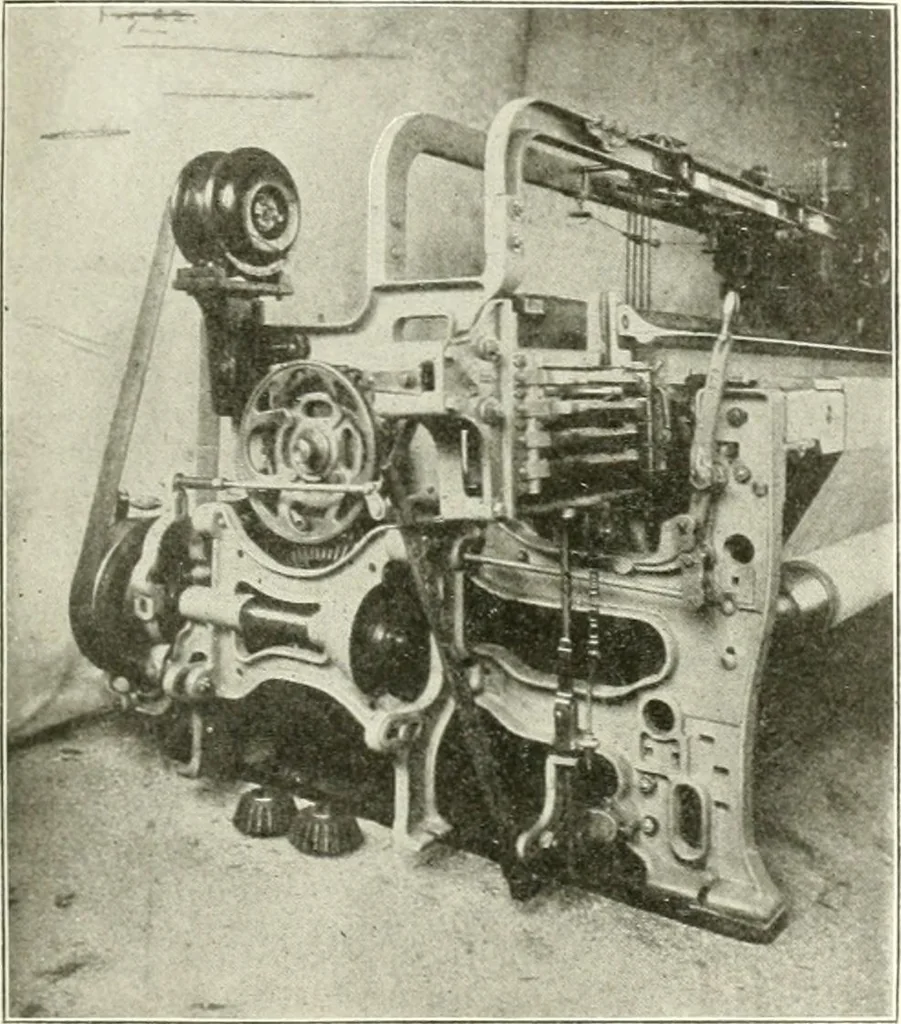

st eoiu, so as to start the loom at once, without anyslipiiing of eone. These settings can be obtained byadjusting the regulating nuts B, B. aud D. The neckof loose pulley and the collai (.. require constant lubri-cation, as they are ahvjiys in motion when the lineshaft revolves. Fig. 22… … Fig. 22.- Dobcross High Speed Loom(Motor Drive.) ou motor, and a groove on loose pulley. This wouldgive as near a positive drive as it is necessary to have.Tlie pinion would drive the chain positively, and thegroove would allow for a certain amount of slippingnecessary for safe driving. The style…
