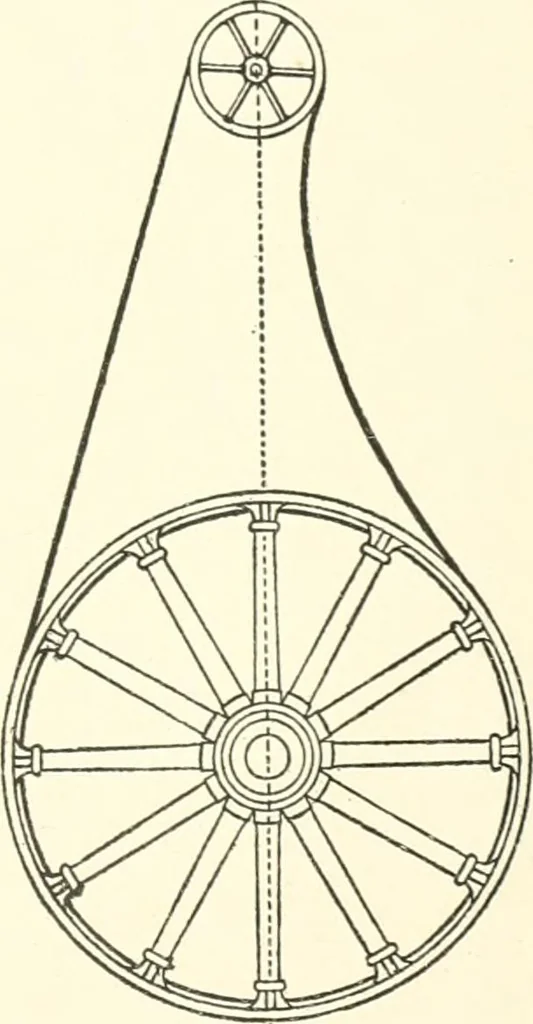

torey of the mill. The sketch. Fig. 4, of scutching room fan drive, illus-trates tile best method of dealing with shafts at rightangles, whether one or more ropes are used. It willbe noticed that the tight side of the rope is deflectedby the guide fixed at a suitable angle, while the slackis… … Fig 3. keyways are a decided advantage in fixing up angulardrives, so that the pulley may be moved to what mayprove to be the best position in actual practice. See-ing that they have no power to transmit, guide pulleygrooves should always take the form of Fig. 5, andbe worked out to the same pitch…
