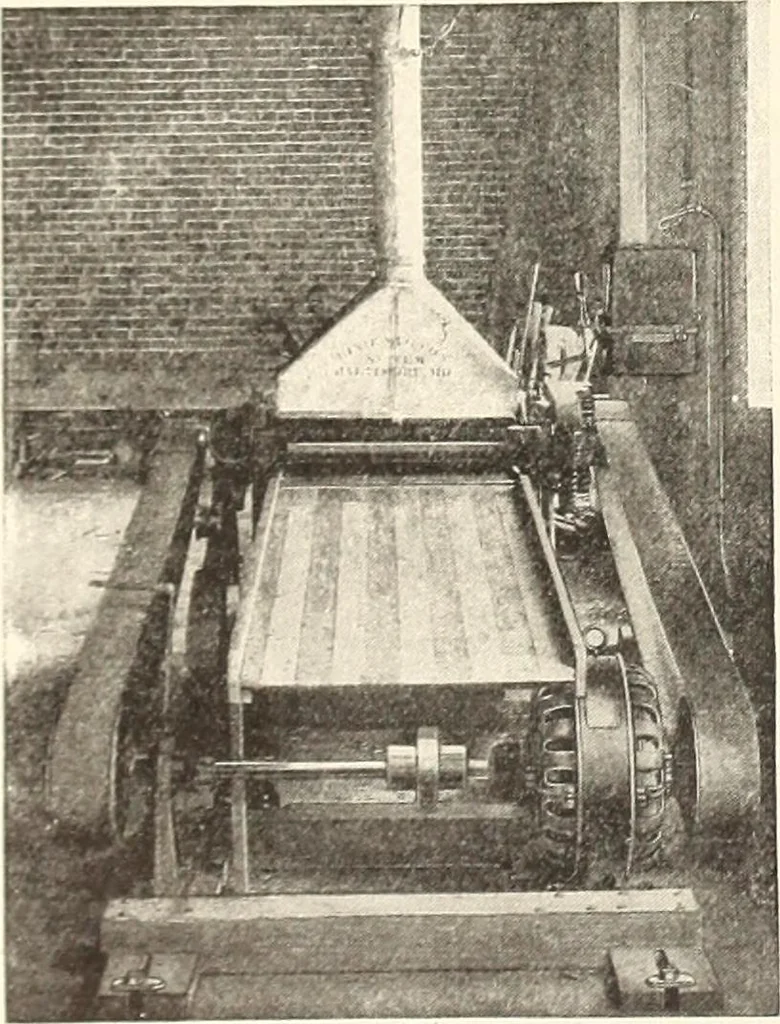

se usedin other lumber fields. Reference to the accompanying cuts will show typi-cal installations of motor-driven planers which are ex-cellent from the point of motor application. Fig. 1 illustrates a 30 h.p.. 1120 r.p.m. Westinghouse.squirrel cage motor, flexihly coupled to the counter-shaft of a… … Fig. 2—Westinghouse induction motor driving H. B. Smith20-inch single surfacer. The motor has a double exten-sion shaft and is built into the countershaft. Thecomplete countershaft is mounted on a slidingbase for belt adjustment. sixty feet per minute. The friction load of this machineis eleven…
