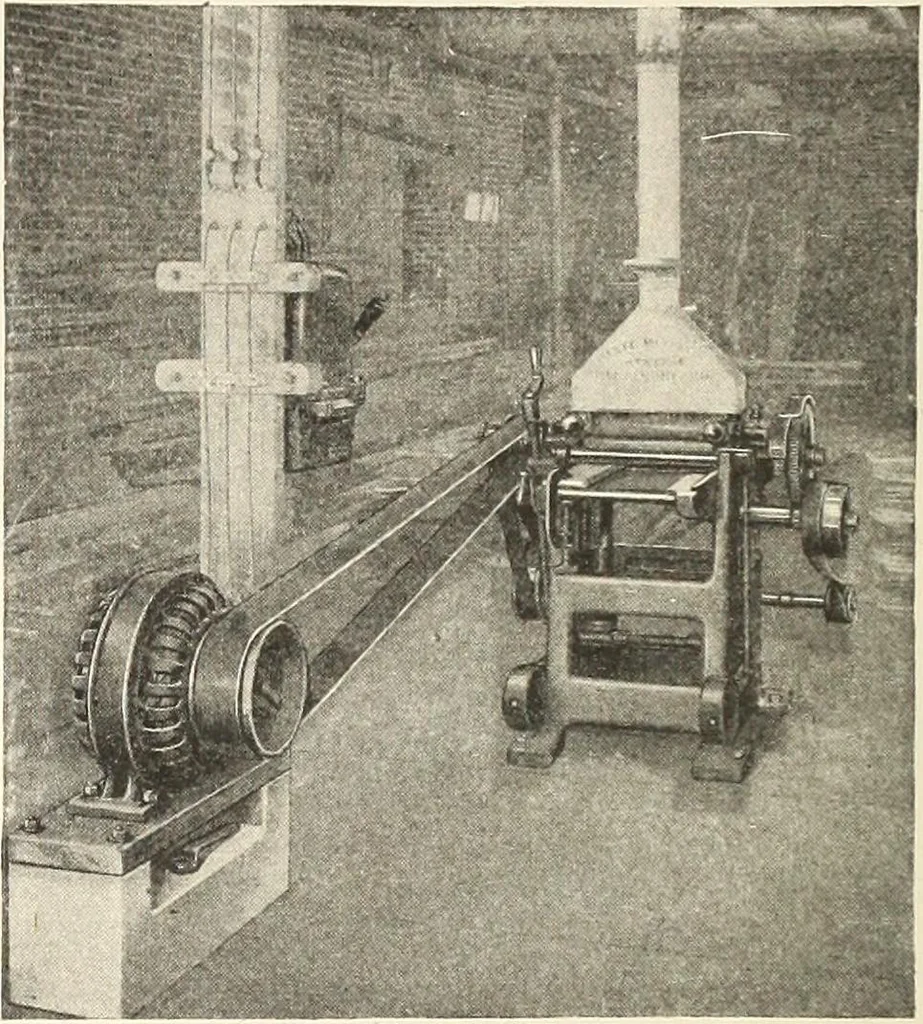

II. II. Smith twenty inchsingle surfacer. and belt adjustment is provided by slid- ing the motor and countershaft along a movable base.This drive makes a very compact arrangement, doingaway with overhead shafting and belts. Another de-sirable drive for this type of machine employs two… … Fig. 3—Westinghouse induction motor belted to J. A. Fay &Egan 17-inch pony planer. inghou.se motor, belted direct to the arbor of a J. A.Fay & Egan 17 in. pony planer. The most recent ad-vance in the application of motors to planers is to flex-ibly couple a high-speed induction motor direct…
