Don Mills, Ont. : Southam-MacLean Publications · leaf 577

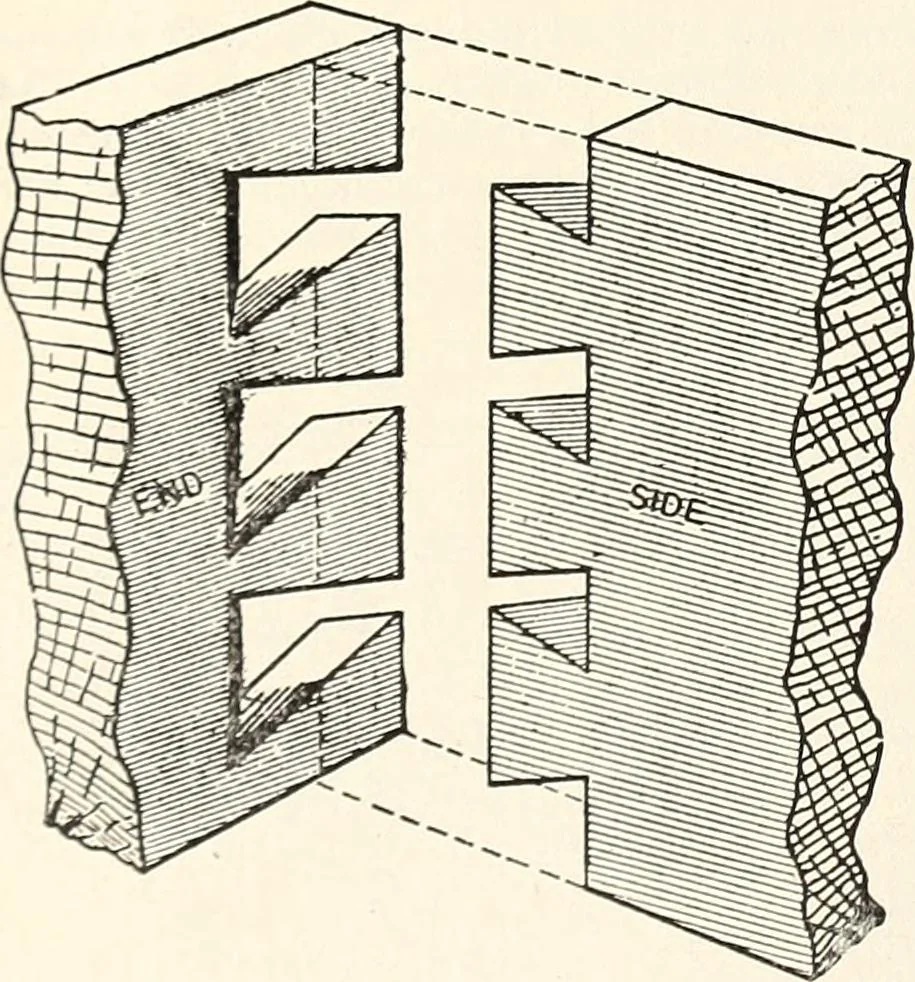

Fig. 1—Dovetail in perspective. dovetail in perspective, the pins being bevelled twoways, hence its name. The pieces forming the box ordrawer having been united, it becomes necessary tosecure the connections in the proper place and alsoto obscure the recesses at the end of the box. This is … Fig. 2—Double bevelled dovetail —Inside view. accomplished by a thin lining put at the ends, asshown in Fig. 1 at C. This having been done theconnections cannot give way and the joint needs noglue to hold it together. Fig. 2 shows the inside view. This is somewhatpuzzling to the amateur, as it is…
Furniture industry and trade · Woodworking industries
Internet Archive · Thomas Fisher Rare Book Library · Public Domain Mark 1.0. Free to use for anything.
