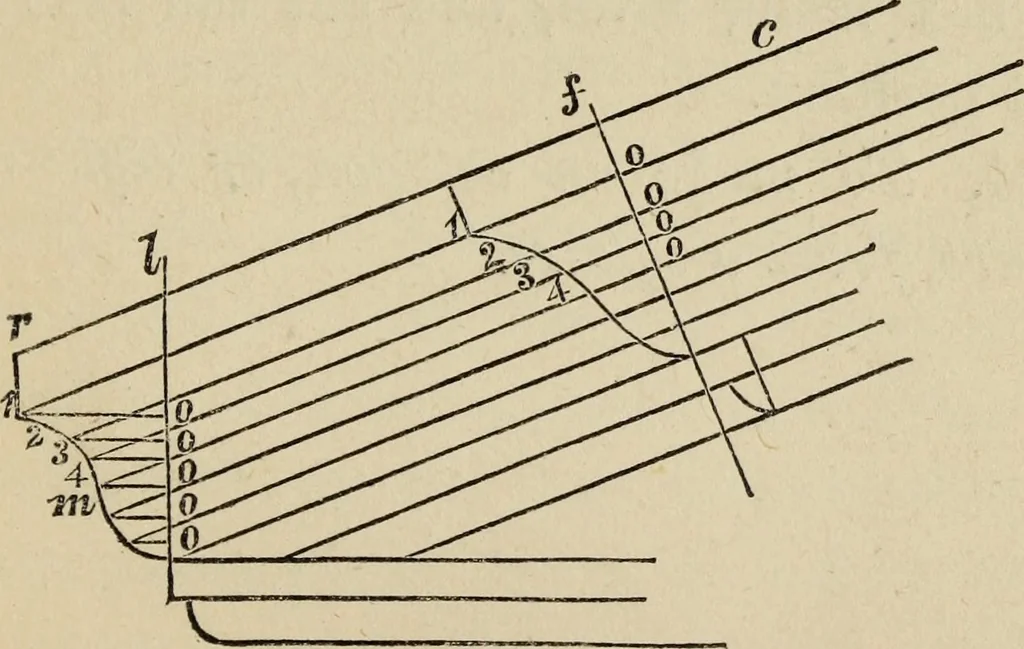

rig. 19. Let a and h (Fig. 19) be tlie given circles.Place tlie diameter of each at right angles tothe other as at 3, connect the ends at c andthen c d will be the diameter of thecircle required. 23. To find the form of a raking crownmoulding. … Fig. 20. so THE carpenters m (Fig. 20) is tlie form of the level crownmoulding; r c \% the pitch of the roof.Draw the line Z, which shows the thicknessof the moulding. Draw the lines o o par-allel to the rake. Where these lines strikethe face of the level moulding, draw the hor-izontal lines 1, 2,…
