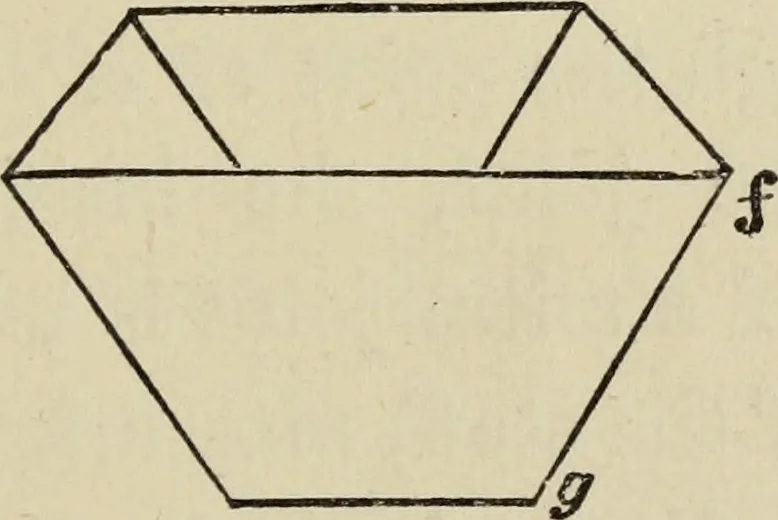

Fig. 26. HAND-BOOK. 35 This is the form of the curve of the Gothicarch or groin. 30. To find the joints for splayed work^such as hoppers^ trays^ &g. … Fig. 2T. Take a separate piece of stuff to find thejoints for the hopper, Fig. 27. Strike thebevel / the bevel of the hopper, on the 1 c 1 / 36 THE carpenters end of the piece (Fig. 28); ran tlie gange-mark c fromy; then square on the edge from or where you want the outside joint, to 5/then square…
