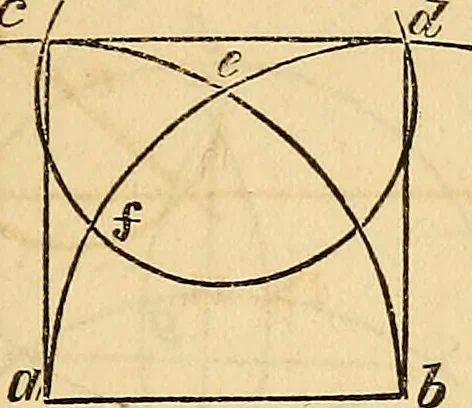

the direc-tion of c. Upon g for a centre sweep thecircle, as shown. Then draw a straight linefrom where the circle touches the lower edgeof the board, through the centre g, cuttingthe circle at d. Then a line from h throughd, will be perfectly square from the loweredge of the board. This is a very… … Let a o (Fig. 15) be the length of aside of the proposed square ; upon a and b,with the whole length for the radius, sweepthe parts of circles a d and b c. Find halfthe distance from a to e at f / then upon efor a centre sweep the circle cutting f Drawthe lines from a and b, through where…
