The carpenter's and joiner's hand-book: containing a complete treatise on framing hip and valley roofs. Together with much valuable instruction for all mechanics and amateurs, useful rules, tables, etc. ... Illustrated by thirty-seven engravings (1863)

Holly, H. W. (Henry Wells) · Norwich, Conn., Published by H. W. Holly · leaf 45

An illustration from The carpenter's and joiner's hand-book: containing a complete treatise on framing hip and valley roofs. Together with much valuable instruction for all mechanics and amateurs, useful rules, tables, etc. ... Illustrated by thirty-seven engravings, 1863, leaf 45

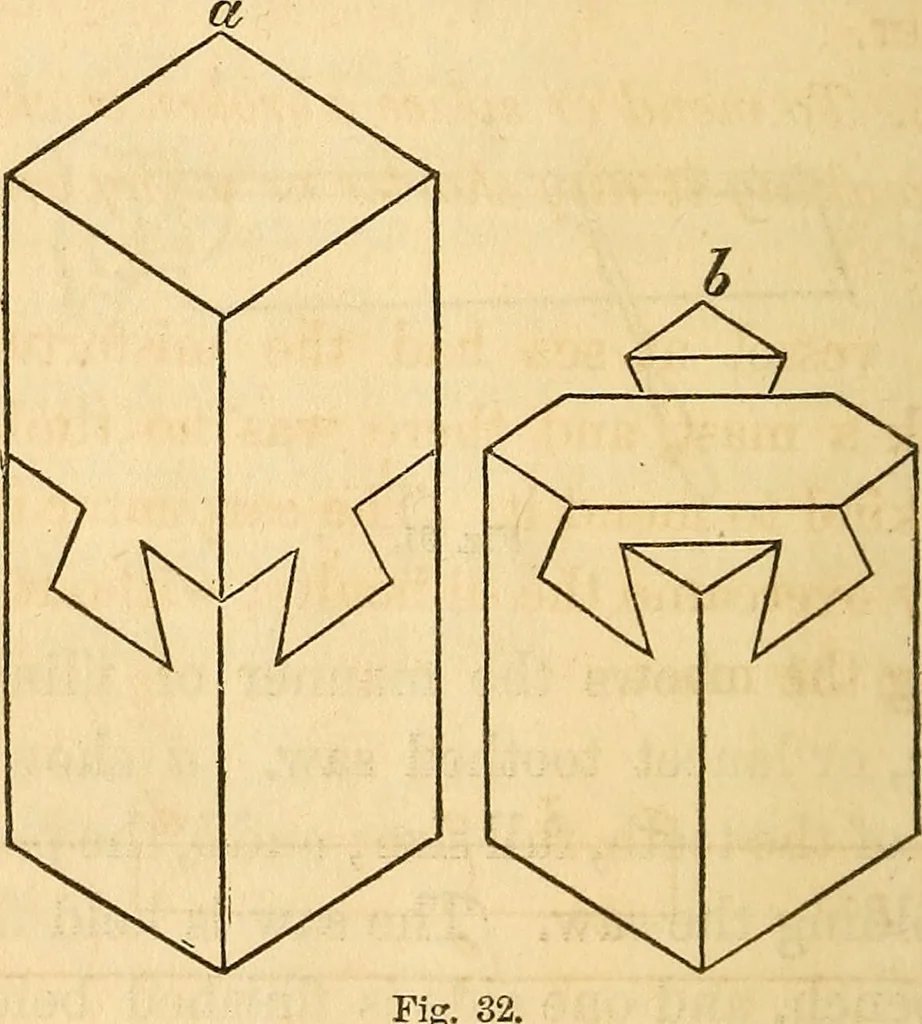

ncet toothed saw. a shows theform of the teeth, full size; and h, the positionof holding the saw. The saw is held flat onthe bench, and one side is finished before itis turned over. ISTo setting is needed, andthe plate should be thin and of the verjbest quality and temper. 40 THE CARPENTER S These… … a (Rig. 32) shows two blocks joined to-gether with a dovetail on four sides. This HAND-BOOK. 41 looks at first like an impossibility, but bshows it to be a very simple matter. Thisis not of much practical use except as apuzzle. I have seen one of these at a fairattract great attention; nobody could…

Carpentry

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
