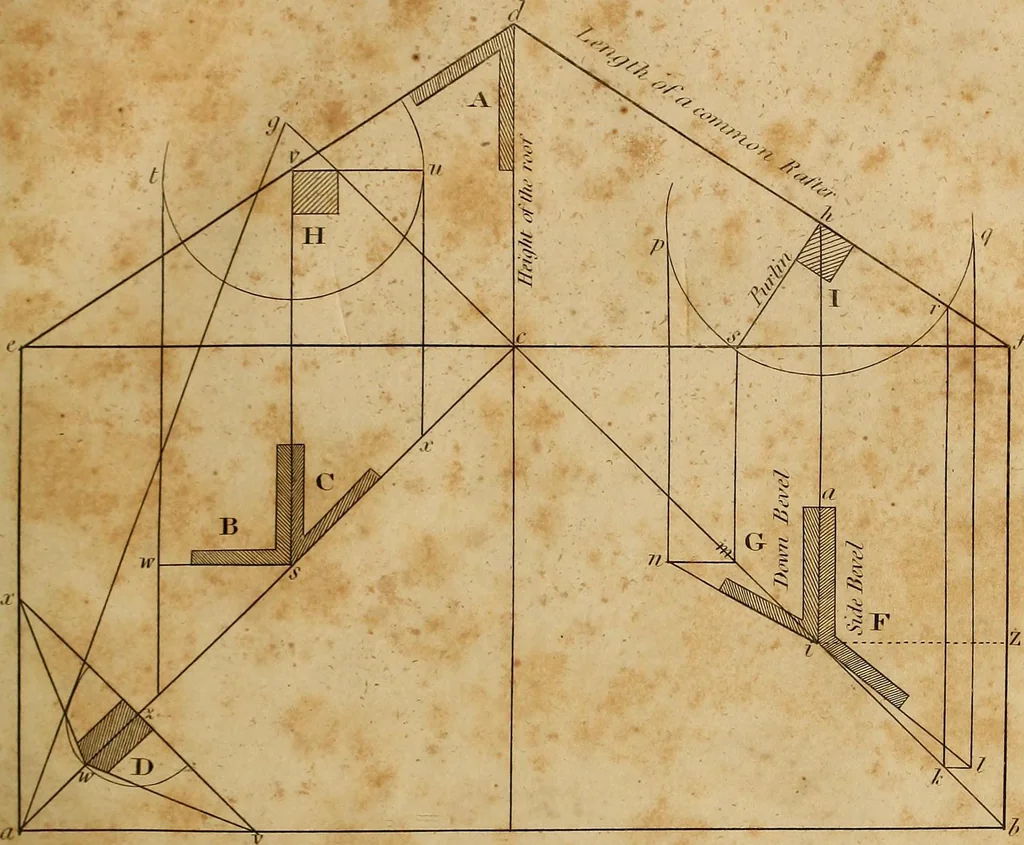

so small a scale, and the sides may be measured from the scale. To find the Bevels of a Purline against the Hip Rafter. Let the purline be in any place of the rafter, as at I, and in its most common position,that is, to stand square, or at right angles to the rafter; and from the point h as a… … Width of the Jtoof Tje Beam \o in \v •> in 1 nvii rhite FLi/. i /
