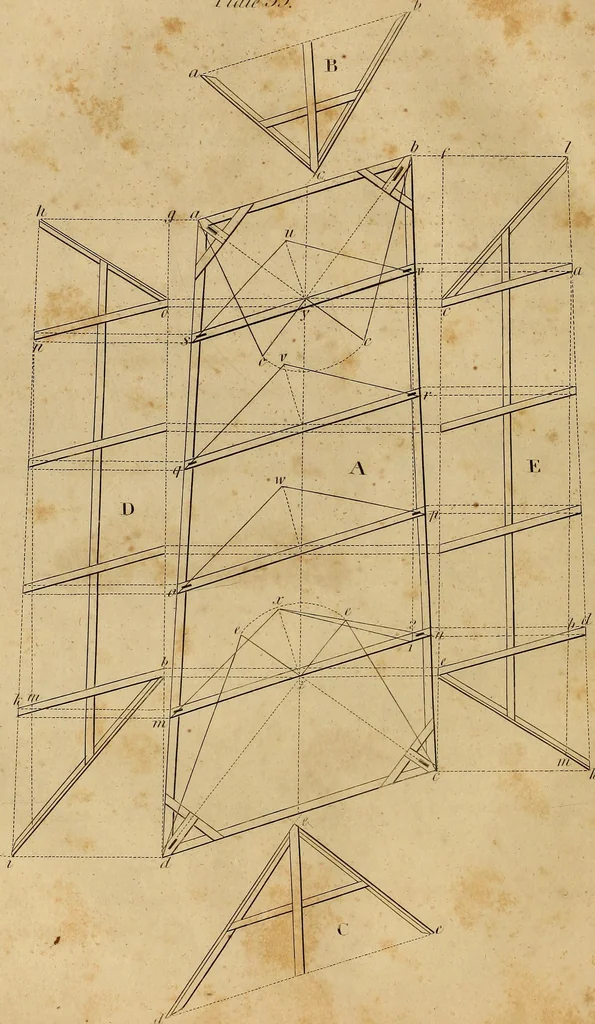

r/a/v JA … ROOFING. % SS sect, draw two parallel lines to the former, to cut the diagonal in m and k ; and draw m nand k I perpendicular to s m and r k, and join the points n, i and A, i ; then G is the downbevel, and F the side bevel of a purline : these two bevels, when applied to the end of thepurline, and…
