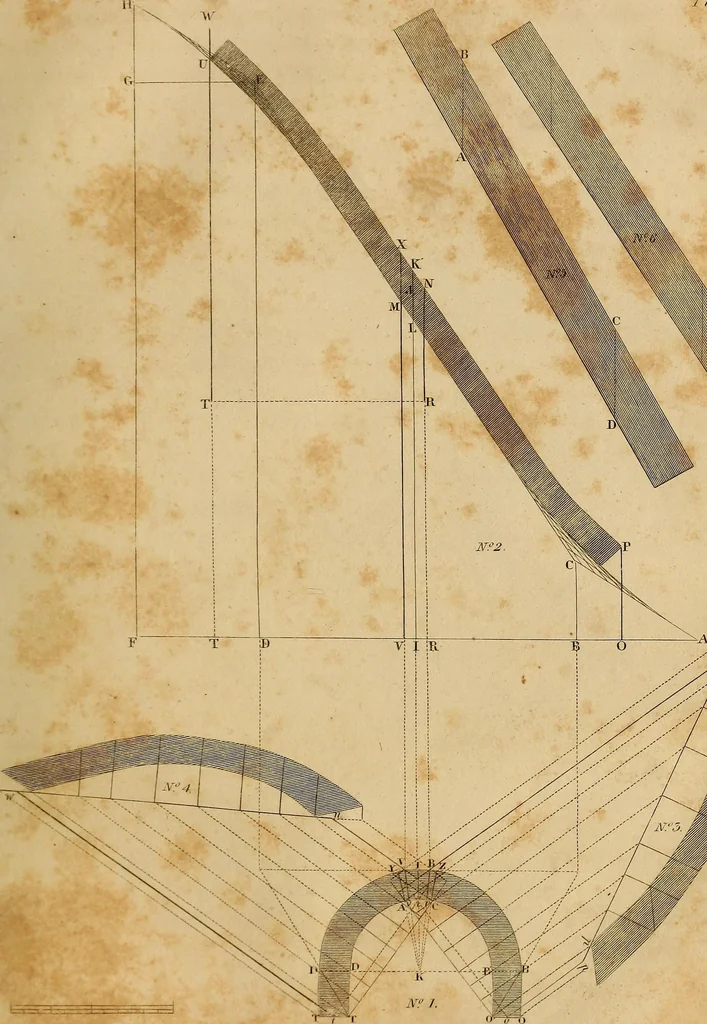

side at A: from thecentre .firadiate A Y, cutting the convex side of the plan at Y: draw op and v x perpendi-cular to o 37 or 0 A: make op equal to 0 P No. 2 ; also make vx equal to F JTNo. 2 ; anddraw p X, then upon p x as a, chord complete the face mould. No. 3 of the lower quarter ofthe winders,… … ////// .v/y. Av, Flati- oa
