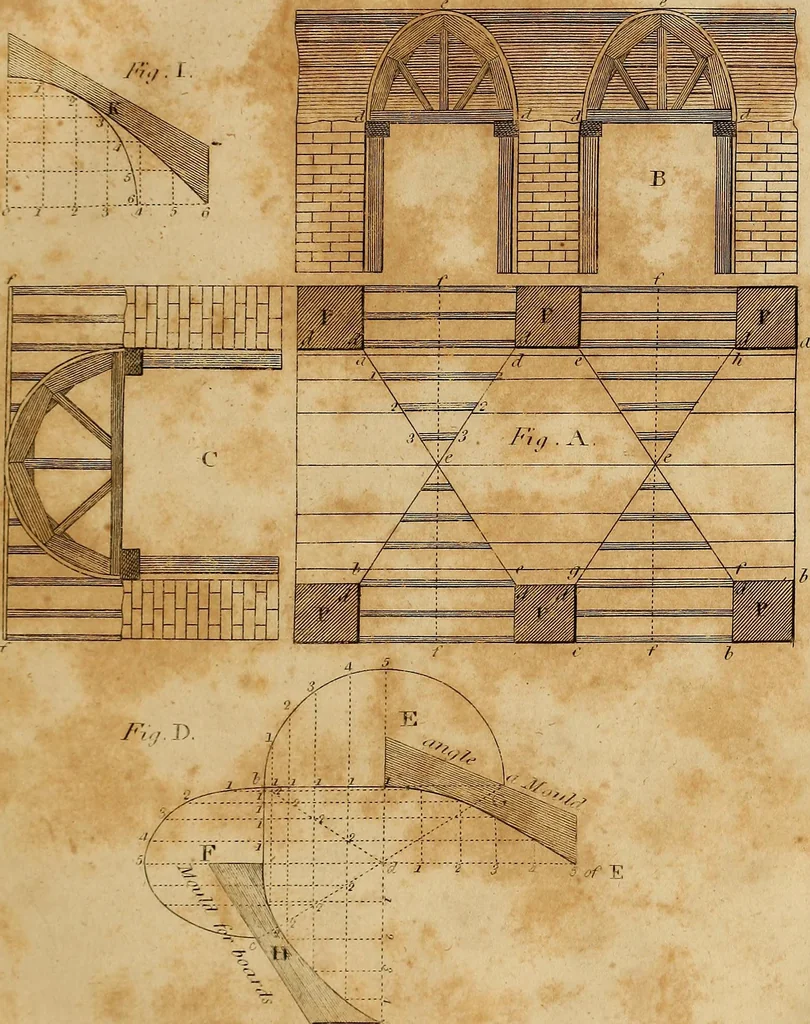

in small rectan-gles : a curve being traced through the diagonals of each recte^ngle, will give a mould toset the jack ribs. How to fix the Jack Ribs. Bend your mould G from a, to the crown at e, in fig. .>^j that will give the edges ofyour boards; then fix a temporary piece of wood, level upon… … Mtu Pl^le 18.
