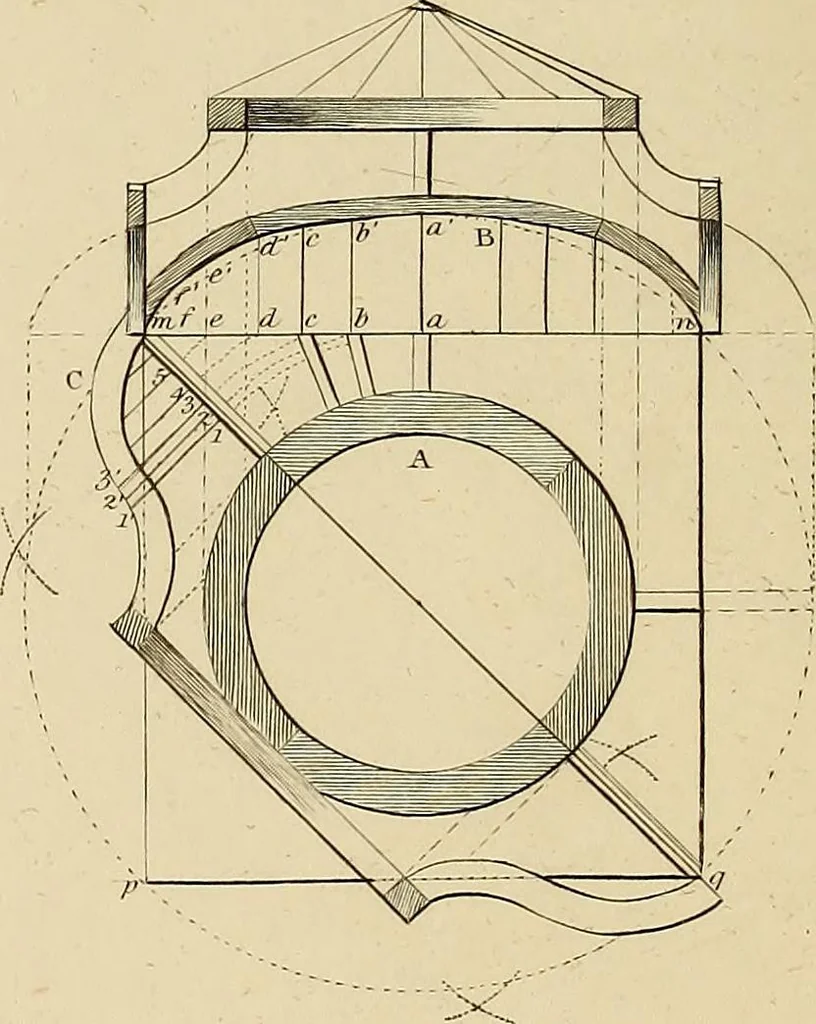

fig. 3. Tui.4. SKYLIGHTS. 45 PLATE 30. SKYLIGHTS. Oiie of the Rihs being given, the square Plan of the Opening or Well, and the octagon Curh above,to find the Ribs and the springing Curve, lohere the Foot of the Ribs come, so that the interiorFinish may correspond with the Curb. Fig. 1. Let C be…
