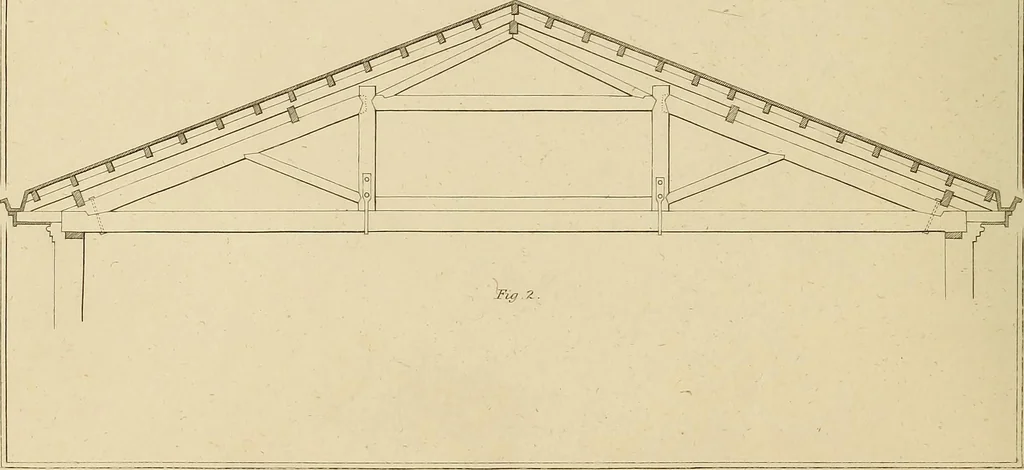

Fi^.l. … ROOFS. 55 PLATE 40. Fig. 1 is a very simple roof, designed upon the more recent principles which have revo-lutionized Carpentry. An oaken block is placed between the upper ends of the principalrafters, after the manner of a key-stone; the grain of the block running in the same direc-tion as that of…
