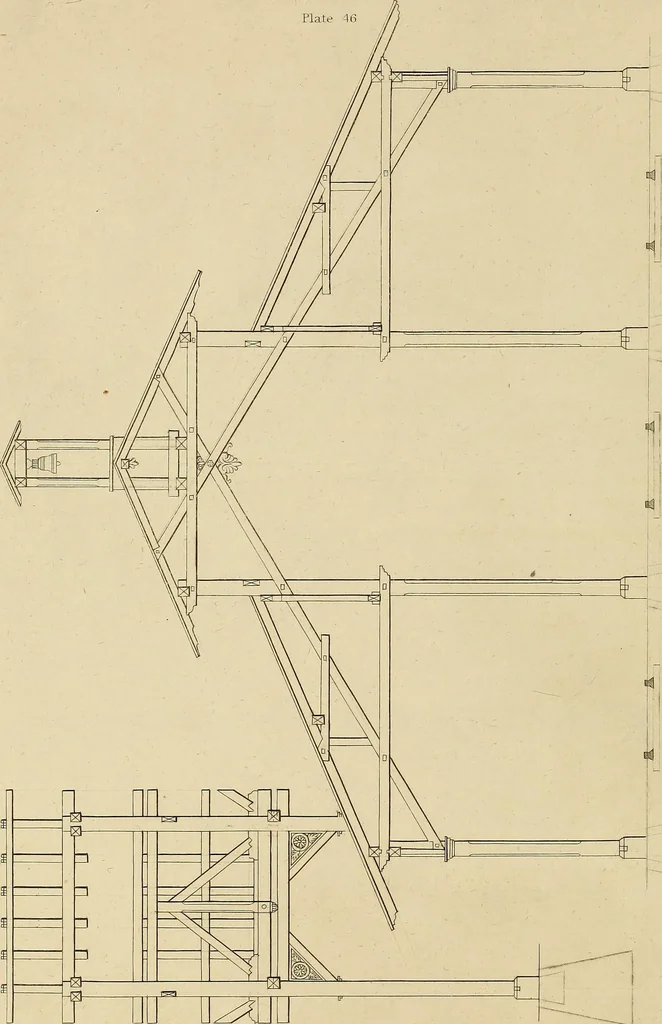

ROOFS. 61 PLATE 46. This exhibits a design for an open-work Gothic roof for a church, hall, or open shed, forlarge assemblies. The design is simple, and needs no remark. A different view of thesame design is shown on the bottom of the Plate. 62 ROOFS, PLATE 47. We have here exhibited a design for…
