The carpenter's new guide; a complete book of lines for carpentry and joinery, treating fully on practical geometry, soffits, groins, niches, roofs, and domes, and containing a great variety of original designs. Also a full exemplification of the theory and practice of stair building, cornices, mouldings, and dressings of every description. Including also some observations and calculations on the strength of timber (1854)

Nicholson, Peter, 1765-1844, Davis, Noah Knowles, 1830- ed, Sloan, Samuel, 1815-1884, ed · Philadelphia, Lippincott, Grambo & Co. · leaf 229

An illustration from The carpenter's new guide; a complete book of lines for carpentry and joinery, treating fully on practical geometry, soffits, groins, niches, roofs, and domes, and containing a great variety of original designs. Also a full exemplification of the theory and practice of stair building, cornices, mouldings, and dressings of every description. Including also some observations and calculations on the strength of timber, 1854, leaf 229

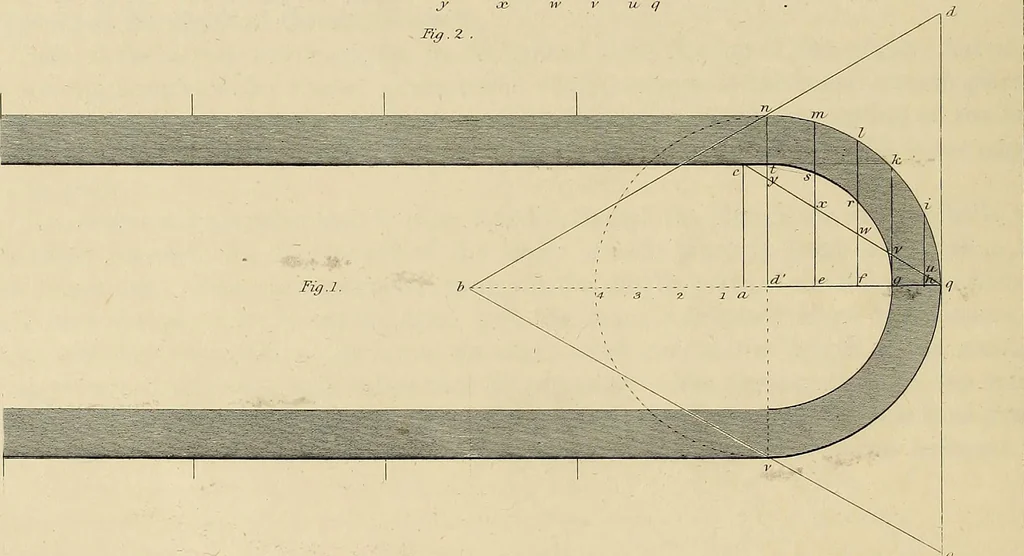

^qea u^^^ ^&^ 7 ■IP ^1 mm K ^ f \ \ … HAND-RAILING. . 85 PLATE 69. To find the Face-mould for the Rail of a Stair-case having a Landing, so that, when set to itsyroper Rake, it loill stand directly ewer the given Plan. Fig. 1. Draw the central line hq parallel to the sides of the rail; on the right line h qapply the pitch-board qca-,…
