The carpenter's new guide; a complete book of lines for carpentry and joinery, treating fully on practical geometry, soffits, groins, niches, roofs, and domes, and containing a great variety of original designs. Also a full exemplification of the theory and practice of stair building, cornices, mouldings, and dressings of every description. Including also some observations and calculations on the strength of timber (1854)

Nicholson, Peter, 1765-1844, Davis, Noah Knowles, 1830- ed, Sloan, Samuel, 1815-1884, ed · Philadelphia, Lippincott, Grambo & Co. · leaf 25

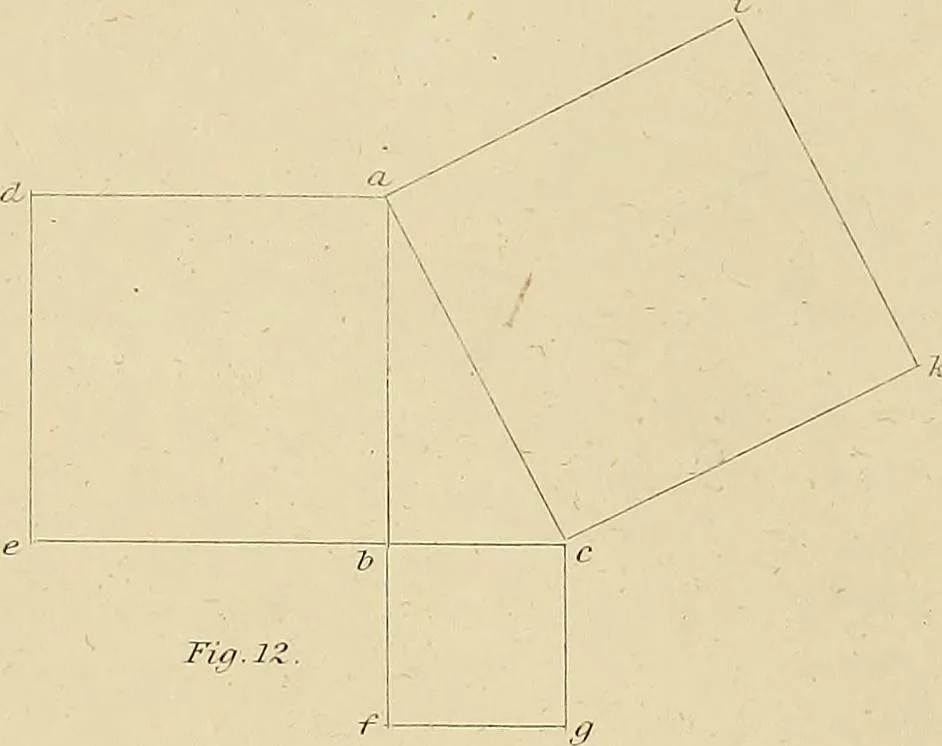

An illustration from The carpenter's new guide; a complete book of lines for carpentry and joinery, treating fully on practical geometry, soffits, groins, niches, roofs, and domes, and containing a great variety of original designs. Also a full exemplification of the theory and practice of stair building, cornices, mouldings, and dressings of every description. Including also some observations and calculations on the strength of timber, 1854, leaf 25
Fig.S. Fig e. Fig.lO. Fi.g.U. t 9 … I ^r^ // E d / ^^^^ F / C ^^^^ / -O Fig. 23 . PRACTICAL GEOMETRY. 13 PLATE e. PE 0 B L E M S —(continu£d). Fig. 1. To construct an equilateral Trianyle on a given Line.From c and h, the extremities of the given line, as centres, and with the radius c h, describe two arcs intersectingat rt, and draw…
