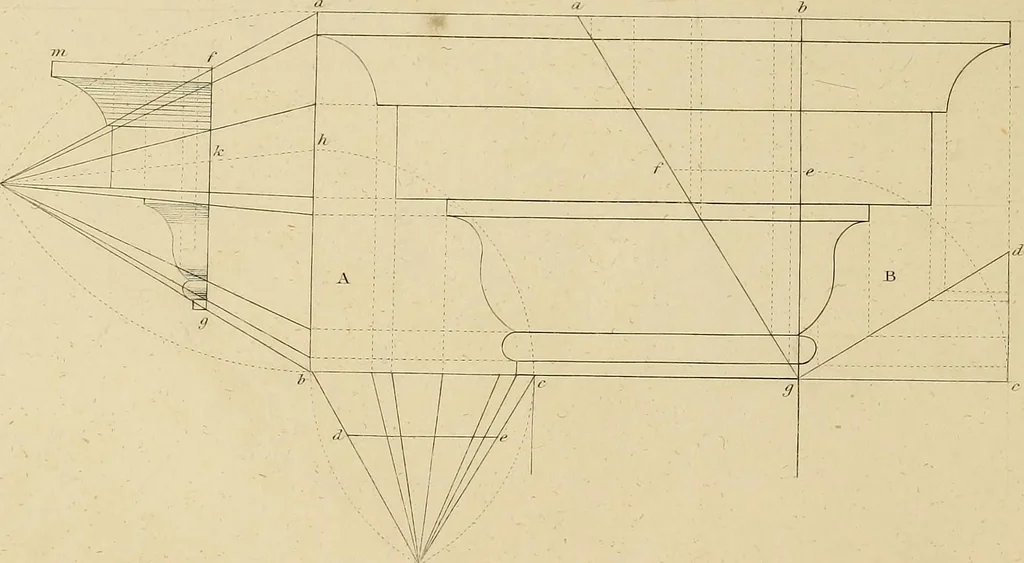

Fif) .2. … MOULDINGS. 95 PLATE 79. Given tlie Form of a Cornice, to draw it to a greater Proportion. Fig. 1. Let the gh-en height of the cornice he ad; set one foot of your compass in a,and cross the under side at h with that height, and from the point c draw the line c c? atright-angles to a &; then the…
