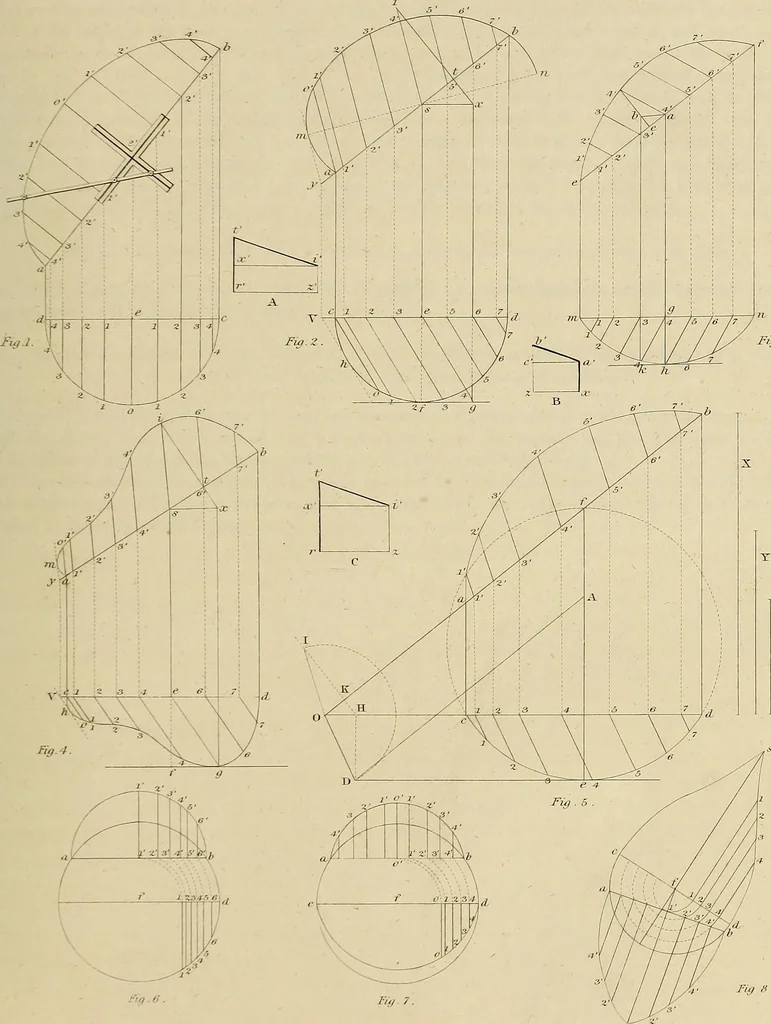

by a Plane forming an obtuse Angle with the Plane of the Segment. Make the angle V a x, at B, equal to the angle of the planes, and draw a d perpendicular to a! x, and make itequal to g h, the height of the segment; draw V d perpendicular to a d; draw ab parallel to m n, and b c perpendicularto ef,… … F,U,.3. PRACTICAL GEOMETRY. 19 At Fig. 4 is esLibited the method of finding an oblique section of a solid of irregular form; which is the same asthat employed in the second method of the problem preceding the last. Fig. 5. Given, the Position of three Points hi the Circumference of a Cylinder, and…
