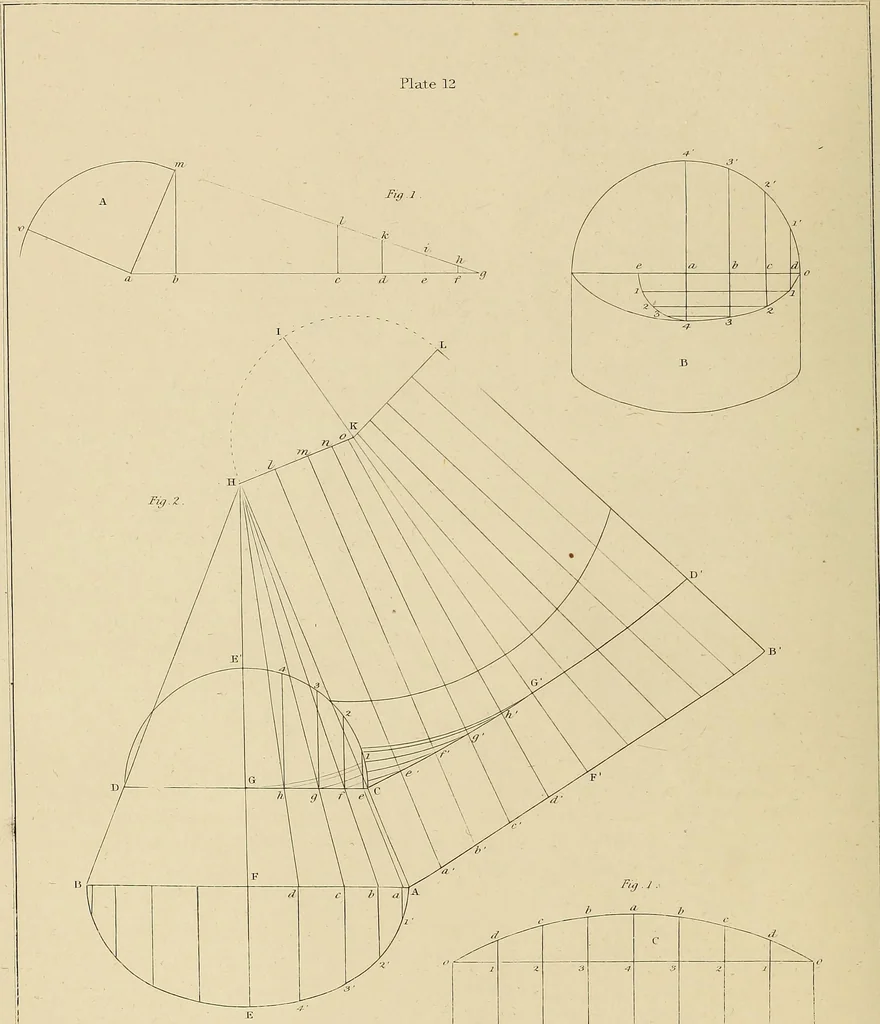

1 , a h ,1 C ~-^^^^ ] I i ;* -? ^ / ■ LININGS FOE SOFFITS. 27 PLATE 12. Fig. 1. To draw the Lining of a cylindrical Soffit cutting right in a Wall which does not stand perpendicularto the Grround, so that the Edge of the Lining will stand directly over the base Line of the Aperture. Let a <7, at…
