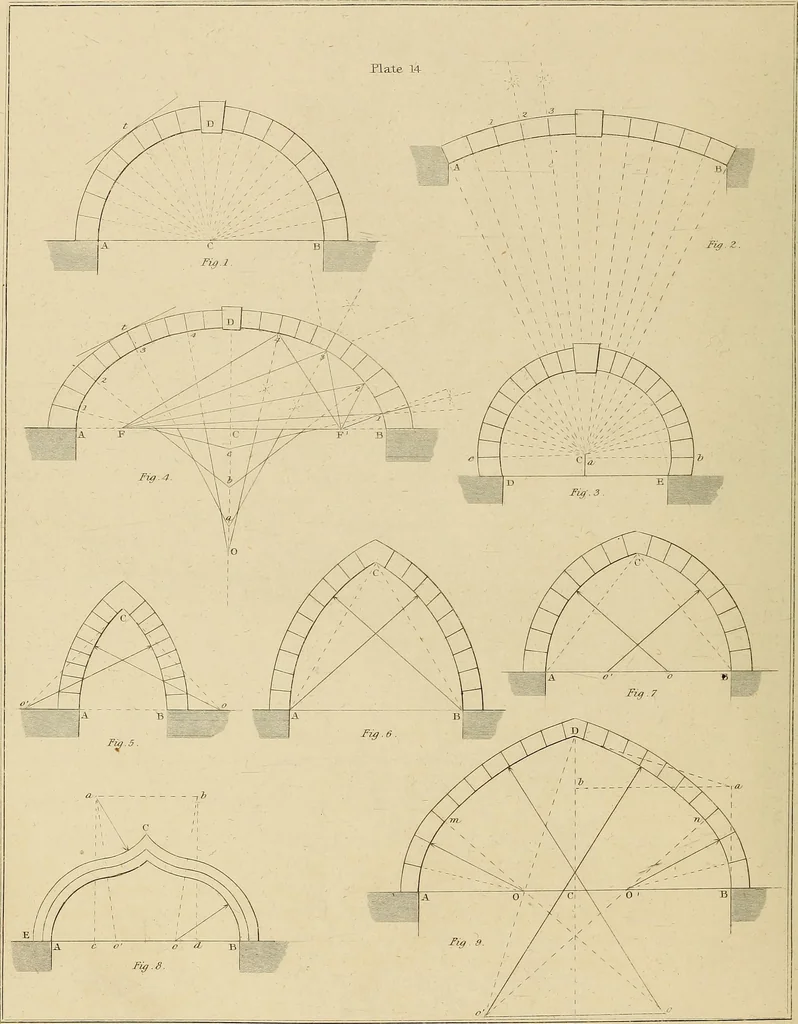

ARCHES. 29 PLATE 14. To draw Arches of various Forms, and to find the Lines of the Joints between the Ar6h-stones. As carpenters are frequently called upon to prepare centring for arches, and also to cutout patterns of the arch-stones, to be used by the stone-cutter, we have thought best to in…
