Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 17

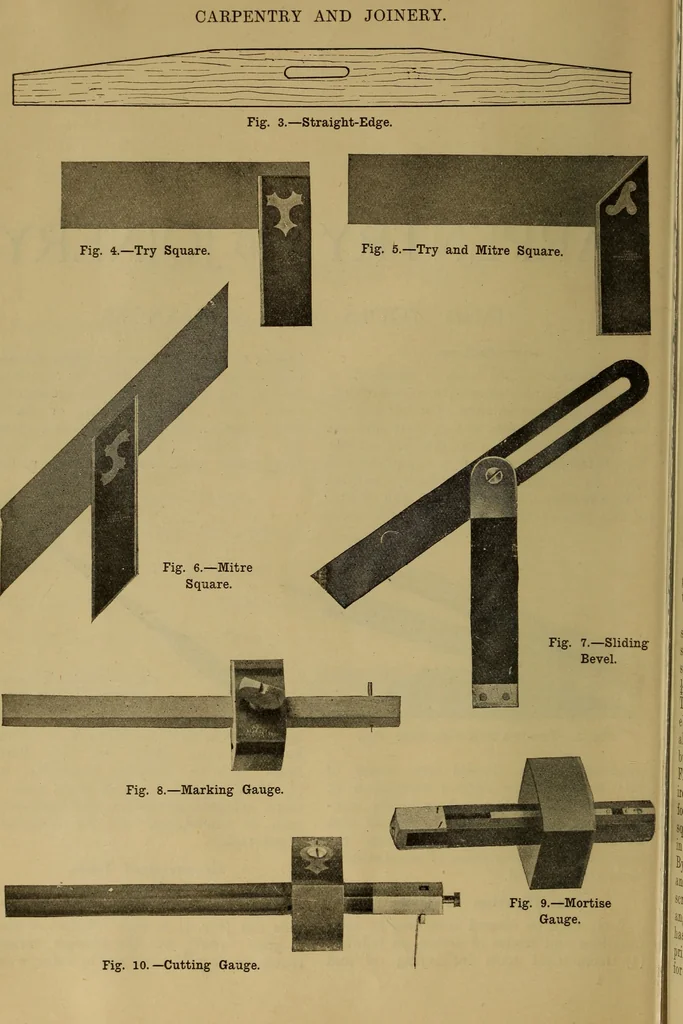

rivers, and (combined with cutting)hatchets, axes, adzes, etc. (6) Boringtools, such as gimlets, brace-bits, etc.(7) Abrading and scraping tools, such asrasps, scrapers, glasspaper, and implementssuch as whetstones, etc., for sharpeningedged tools. Geometrical Tools. Rules.—For all-round purposes a… … Fig. 10.—Cutting Gauge HAND TOOLS AND APPLIANCES. Marking and Scribing.—The carpenterslead pencil is of a flat, oval section, sharpenedto a chisel edge, which has a greater bodyof lead than a point, and lasts a reasonabletime before requiring to be re-sharpened.The marking awl and the striking…
Carpentry · Joinery
