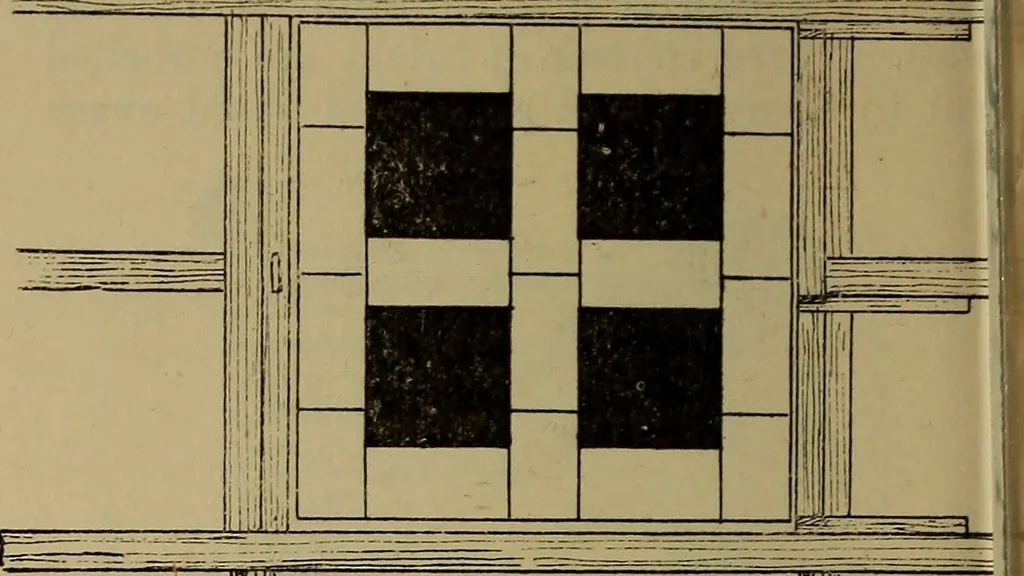

behindChimney, and to M Roof. Fig. 622 shows a section through a gutterbehind a parapet: a is the tilting fillet,B the bearer; drips and fall areshown. The conventional view (Fig. 623)clearly shows a method of constructingand fixing the bearers; those at a arearranged to form a drip. Gutter… … W IS Fig. 626.—Plan of Trimming and Bearers forGutter to Chimney.
