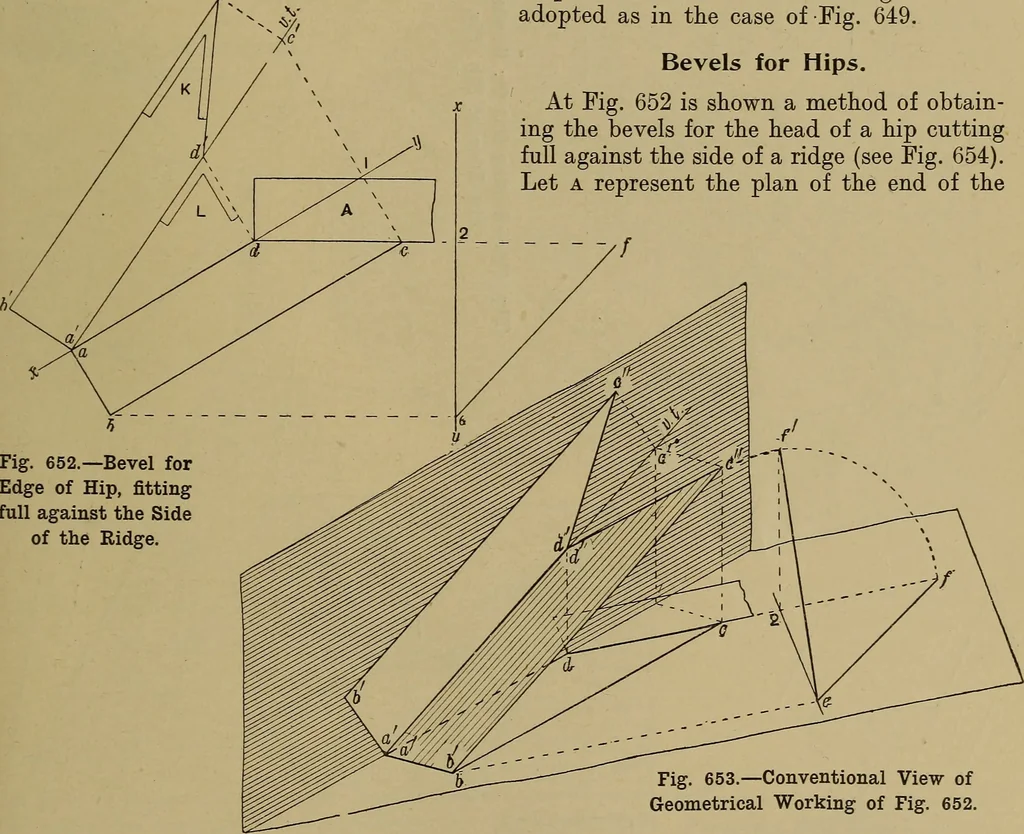

ely parallel to x y,points q and r are obtained, and thus thebevels e and f. Although the bevels G- andH are not the same angles as E and f, theyare obtained in exactly similar manner, aswill be seen. It should be noted that as faras practicable the same lettering has beenadopted as in the case of… … Fig. 652.—Bevel for Edge of Hip, fitting full against the Side of the Ridge. of wall plates (Fig. 651), and b d the centreline of the plan of the hip ; fixing upon anypoint a in it, draw ab,ac, parallel to b c, a brespectively. At any convenient point b drawb d at right angles to b c, and from d…
