Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 319

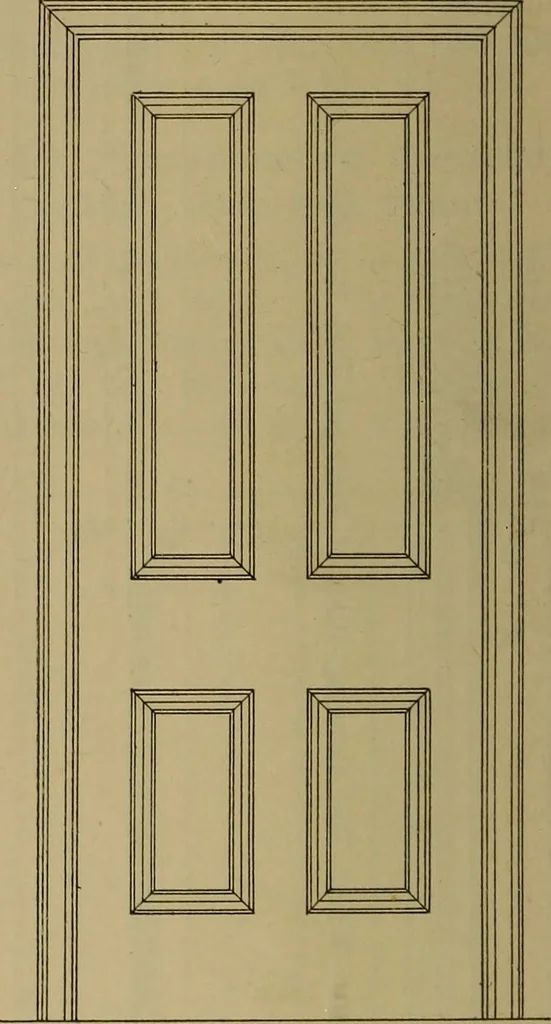

in.thick. Mark the mould shown in Fig. 948 on the rod as before, leaving J in. over thequirk of the bead (see l, Fig. 948). Draw aline parallel to the back of the frame (theinside edge), and one to meet the rebate forthe door. Fill in the stiles and the muntinwith the same mould as before, the… … Fig. 945.—Elevation of Four-panelled MouldedDoor. of the frame to meet a line 10J in. from theface of the frame. This will form the faceof the lining. The thickness is given bysetting back 1 in., and squaring across asbefore. The plan will be completed whenthe 2-in. splayed ground and moulded…
Carpentry · Joinery
