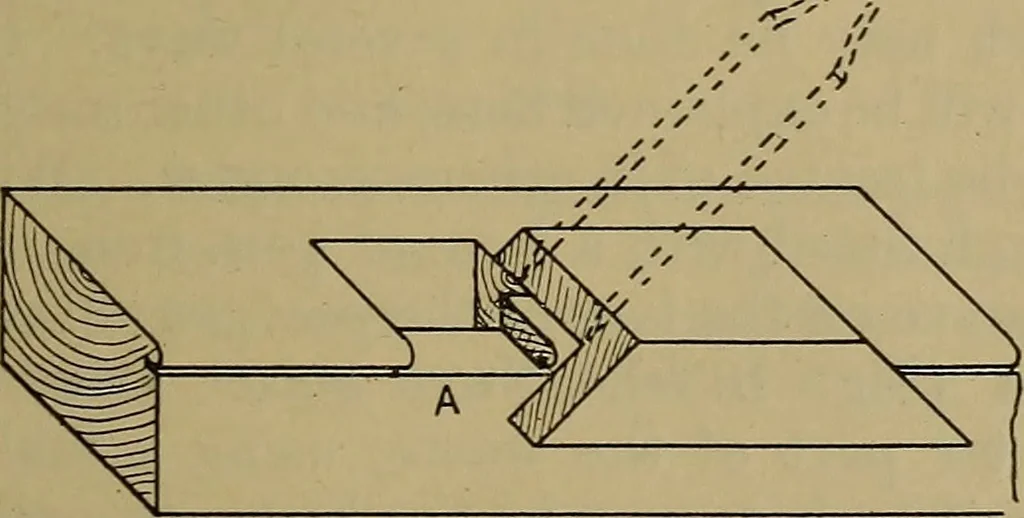

f the postsand the head. The shoulders should becut, and the part between the head andmortice sawn out and pared as shown ata (Fig. 1044) ; then with a mitre templateand chisel form the mitre as indicated.The beads at the top of the post should alsobe mitred as shown at b (Fig. 1037). Thejoints… … Fig. 1044.—Mitering Bead. apply the rod and mark off for the shouldersat top and bottom. The splay for the sill(Fig. 1036) must be allowed for as shownat a (Fig. 1040). The inner shoulder dmust be carried beyond the outer one c,so as to allow for the bead on the inner edgesof the frame (Figs. 1037…
