Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 355

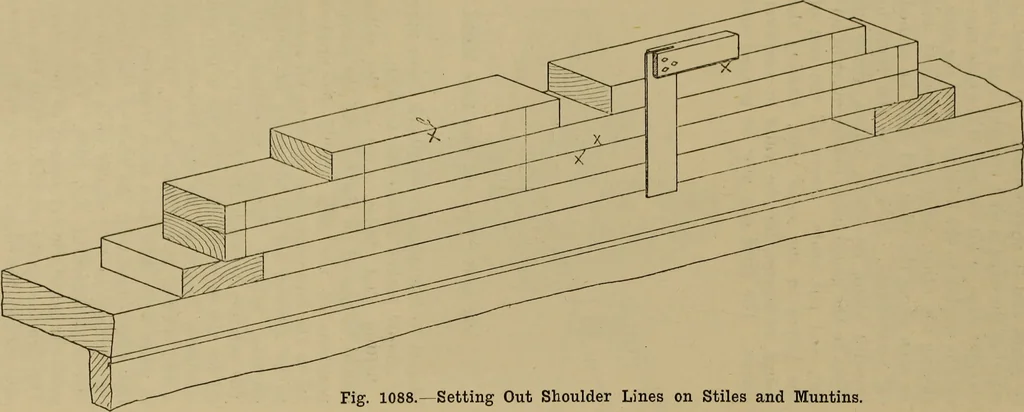

ds of the lowerone resting on two planes on a couple ofblocks as shown at Fig. 1088. This facili-tates the use of the try square, as indicated.Through the marks pricked off from the rod,square down the edges as shown at Fig. 1088.When there are muntins they may be placedon the stiles and squared… … and scribed all round for the shoulders. Thesetting out on the edges for the morticesshould be complete as shown at Fig. 1089 ; then by using the square and ticking off onthe back arris, as indicated by the dottedlines, and also marking off about \ in.or f in. (according to the size of the work)for…
Carpentry · Joinery
