Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 375

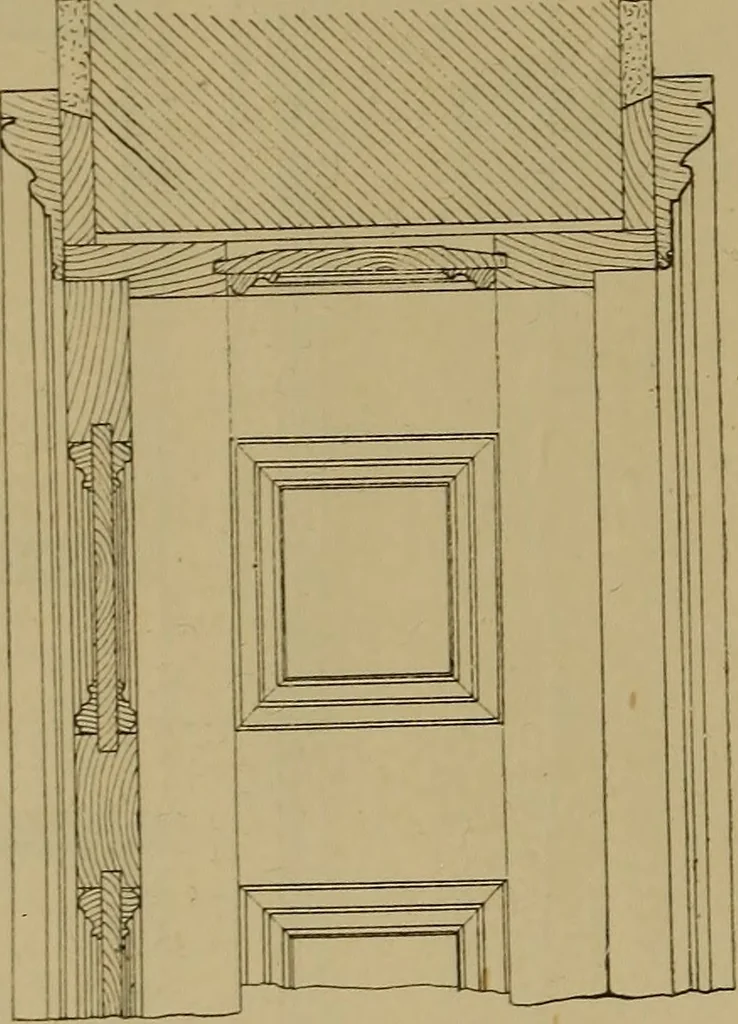

wood lintels are used as shown, there is verylittle difficulty in fixing the head. Groundsto form a base for the architraves are nowfixed round each side of the openini, flushwith the edges of the jamb linings as shownatL (Fig. 1142). A board of the necessarywidth, which in this case is 15 J in.,… … Fig. 1146.—Enlarged Detail through Head ofLinings, Architraves, etc. Six = panelled Door with Framed andPanelled Linings in an i8=in. Wall. A door and jamb linings of rather a moreimportant character are illustrated byFigs. 1143 to 1146. The general construc-tion of the door would be similar to…
Carpentry · Joinery
