Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 389

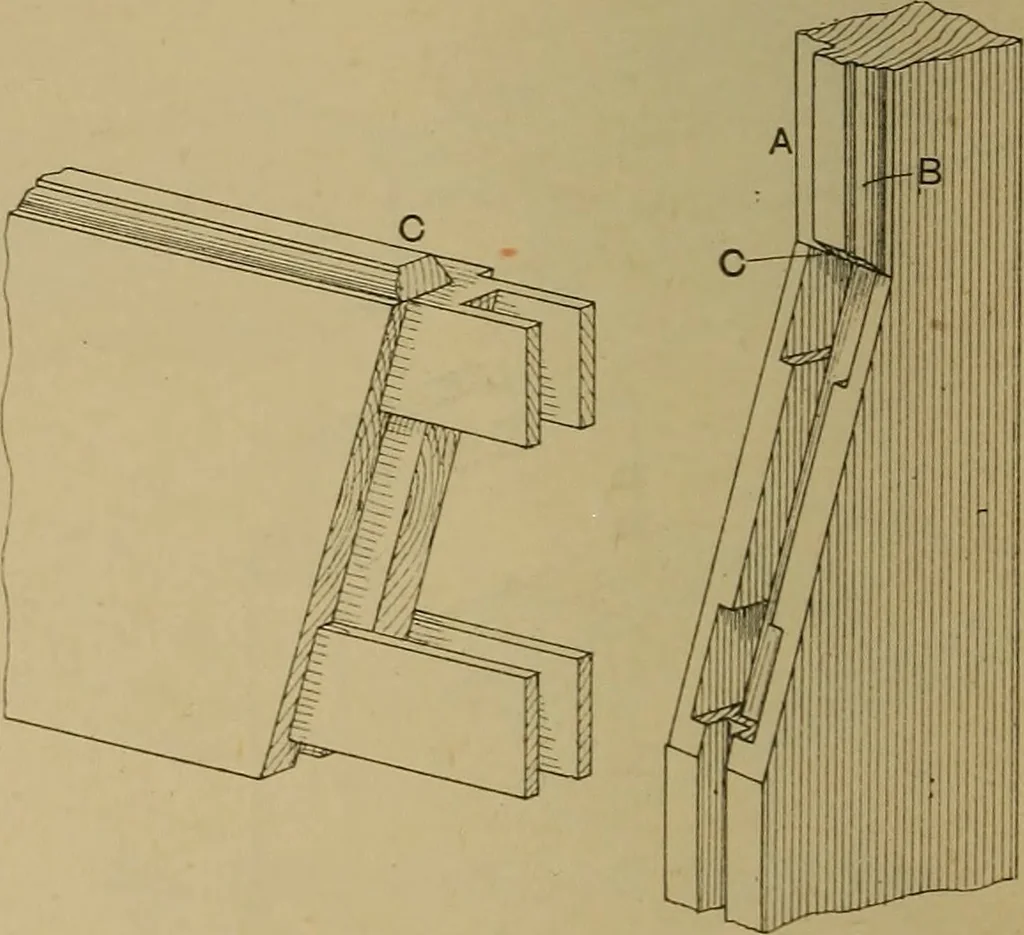

Fig. 1194.—Lining Marked Out andp Gauged forBevelling of Edges. … Fig. 1196.—Joint between Stile and Middle Railprepared for Mortice Lock. scribed over that on the head instead of miter-ing, and this method will be illustrated in afuture example. The frame, after fitting,would be wedged up, and a stretcher nailedacross the bottom in the usual way. Splayed…
Carpentry · Joinery
