Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 407

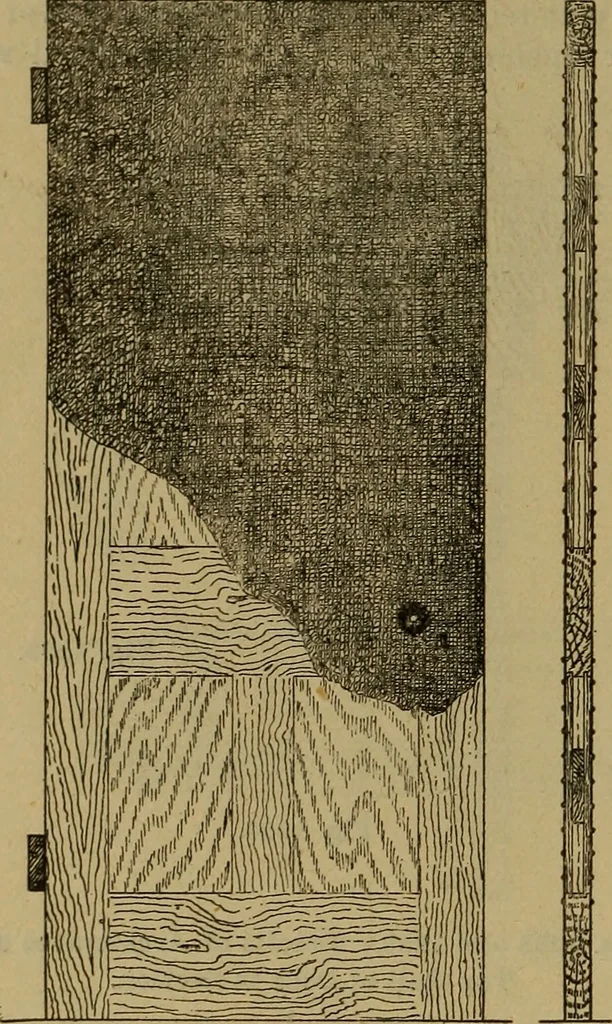

e-covered doors will now be described. Flatsurfaces on each side of the door are usual,but a flush-panel door will answer admirably 378 CARPENTRY AND JOINERY. if the flush side only is required to becovered. Figs. 1240 and 1241 show respec-tively front elevation and section, and itwill be seen that… … Fig. 1240. Fig. 1241. Fig. 1240.—Front Elevation of Double-panel Baize-covered Door.Fig. 1241.—Vertical Section (Fig. 1240). and side stiles respectively, as shown in Fig.1242, which shows also the back rebating ofthe panels. The panels are centrally screwedto these stiffeners, thus allowing…
Carpentry · Joinery
