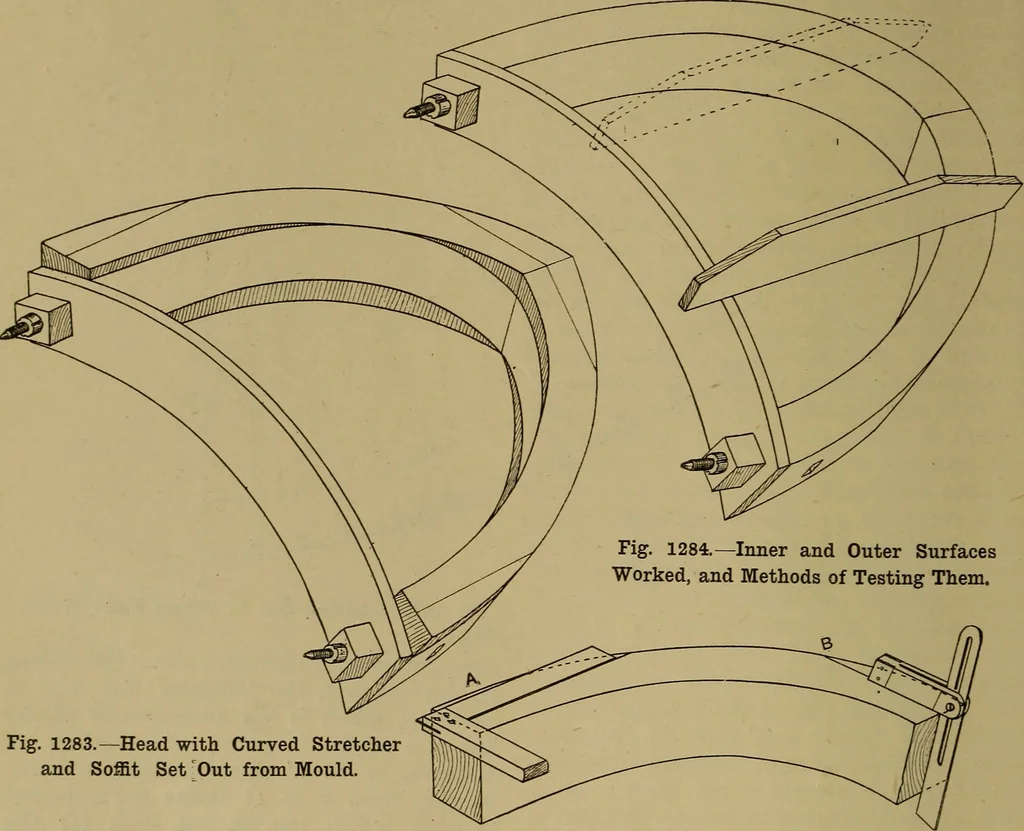

ing over, theface mould for the inside can be appliedto the back side of the plank, as indicatedby* the dotted curves. The next processwill be to saw to these lines as near aspossible, after which the joints should bemade. In making these, a horizontal and done, the joints should next be set out… … Fig. 1283.—Head with Curved Stretcherand Soffit Set Out from Mould. vertical tangent line, which]hasjbeen drawnon the face mould as shown, should betransferred to the face of the plank, asindicated at Fig. 1282 ; these lines will befound very useful for the application ofthe try square when testing…
