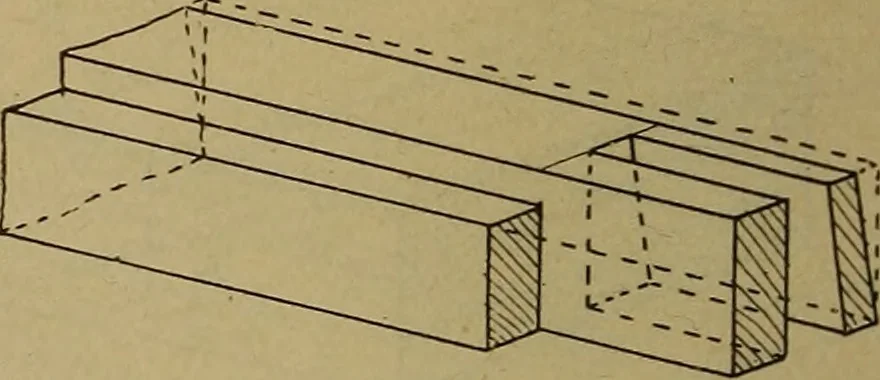

, trimming off the sill to the level ofthe pulley stiles if necessary ; fix the backlining with 1-in. nails ; nail the head liningsas before ; cut off the ends and smooth up.Only f in. of the frame is seen on this side,so not much trouble need be taken, exceptwith the sill. Stand the frame up and… … Fig. 1354.—Tenons Cut and Rebated. Fig. 1355.—Portion of Rail completed. Setting Out Sashes.—Lay a stile on the rodas shown in Fig. 1337, in which the framehas been omitted for clearness, and squareup the sight lines, pair the stiles, and set outmortices for top and bottom rails half thewidth of…
