Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 448

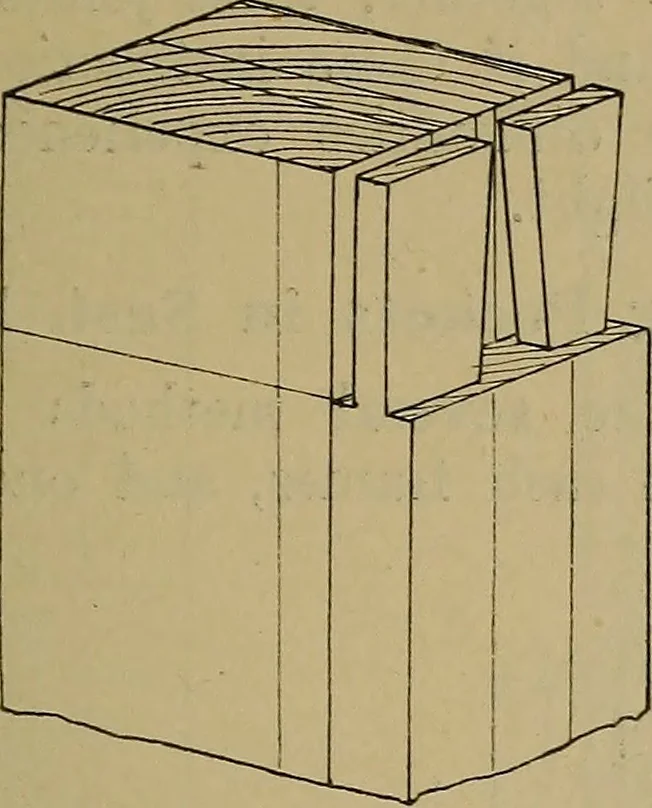

on the stiles, and work the sashaccordingly. Run a weather groove alongthe bottom edge, and bevel off the face tofit the bead. Put the sash in place, andreplace the guard beads. Figs. 1358 to 1362 WINDOW SASHES AND CASEMENTS. 417 show details of the joints in the sashes. Theletter references in… … Fig. 1364. -Template applied to Stile of BottomSash. sash rail; R, sill; s, sill bead ; t, throating.The description of the construction of thesash frame and sashes is now complete, butthe next four paragraphs will discuss indetail some of the operations briefly de-scribed above, and will suggest…
Carpentry · Joinery
