Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 460

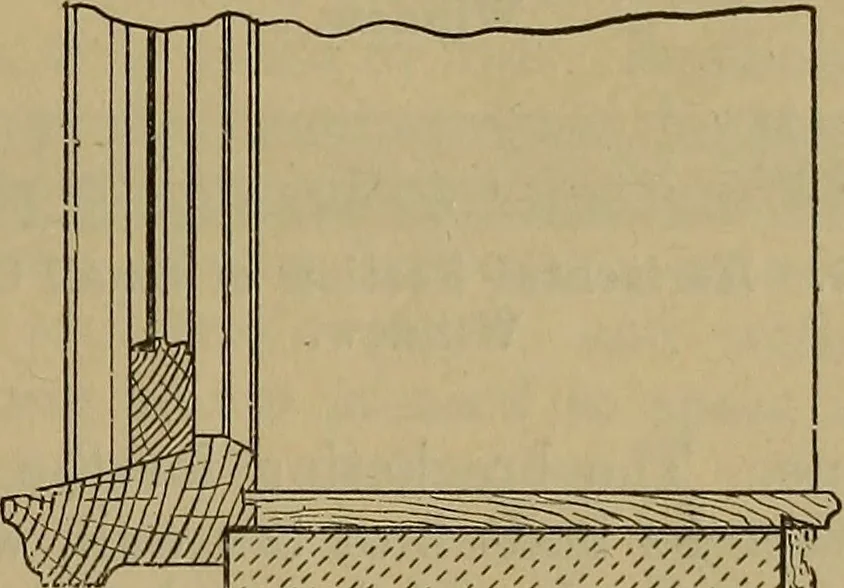

ornice, asshown in Fig. 1402. A lead flashing laid Fig. 1403.—Section through Head. to receive the frame. The sill is shown re-bated § in. deep, and should be bedded incement, and its ends built into the wall. Ifthe cornice is carried over the face of thewall and returned upon it, then the headof… … Fig. 1404.—Section through Sill. over the cover board of the cornice and upthe face of the wall will prevent the ingressof the wet. The casements, of which thereare three, open out, and are hung to thejambs, the centre leaf being fixed. Themeeting stiles are rebated together. Theglazing is a leaded…
Carpentry · Joinery
