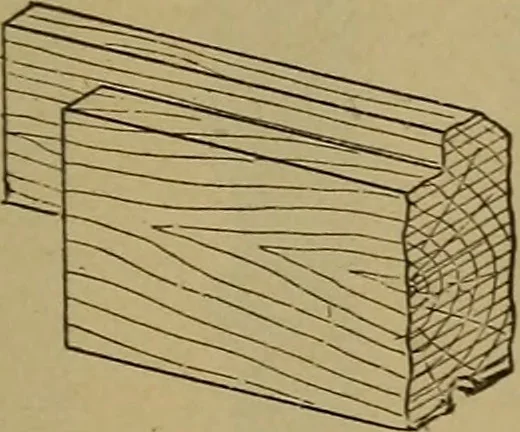

Fig. 1412.—Conventional Viewof Meeting Stiles. … Fig. 1413.—Joint of Bottom Rail and Stile. glass and chamfered and mortised andtenoned together. In the joint shownat Fig. 1411, it will be seen thatthe shoulder on the head is scribed to fitthe chamfer on the stiles. The bottomrail, If in. by 3J in., is also rebated andchamfered, and is mortised…
