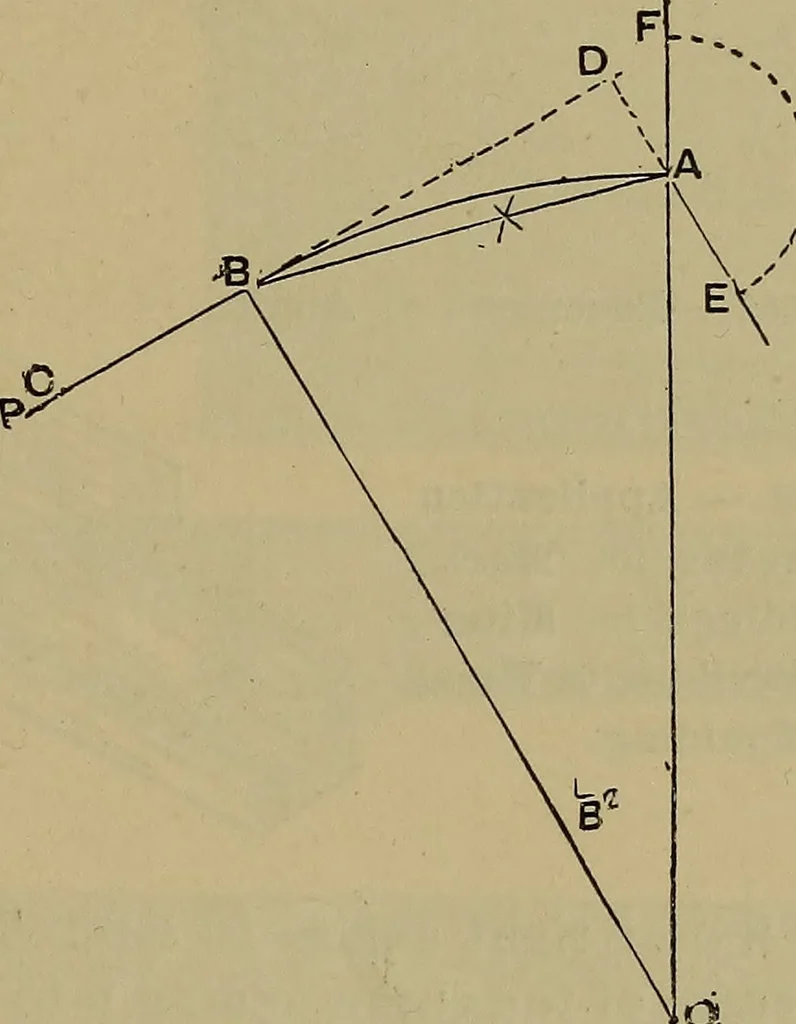

horizontal mould-ing in a vertical mitre. Points in theprofile of the lower part of the sectionof the raking mould are shown at h, 6-,1, 8, 9; these are obtained in an exactlysimilar manner to the upper portion,and no difficulty will be found in follow-ing the working illustrated. Each imagin-ary… … Fig. 1586.—Ramping Moulding to Given Point. curve if it is not circular). Continue thelines drawn to the mitre line to this line,and project lines thence at right angles.Draw the projection line p l as shown, andobtain the intersections on the points onthe required profile. Ramping Moulding to…
