Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 523

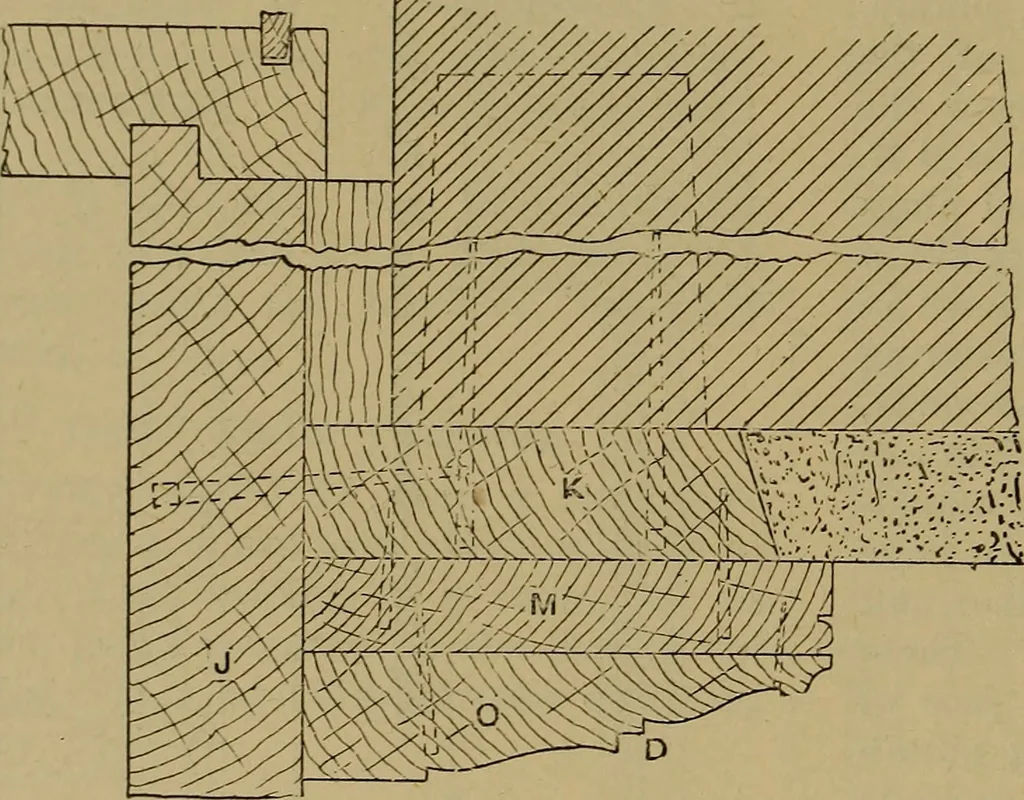

the rod, and plug the walls toreceive them. The best way to do this is todrive plugs at the required height from thefloor at each end of a bay, and resting aplumb-rule in the rebate of the top grounde (Fig. 1608), plumb it upright, and with apiece of the thin ground as a gauge drive inthe plug… … Fig. 1609.—Detail at A A (Fig. 1606). should remain as given—namely, 9 in. Asthere is a skirting fillet, an extra fit for thelower edge of the plinth is not necessary.Fixing the Sham Dado.—If this dado is tobe prepared at a shop some distance fromthe building where it is to be fixed, the pre-pared…
Carpentry · Joinery
