Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 527

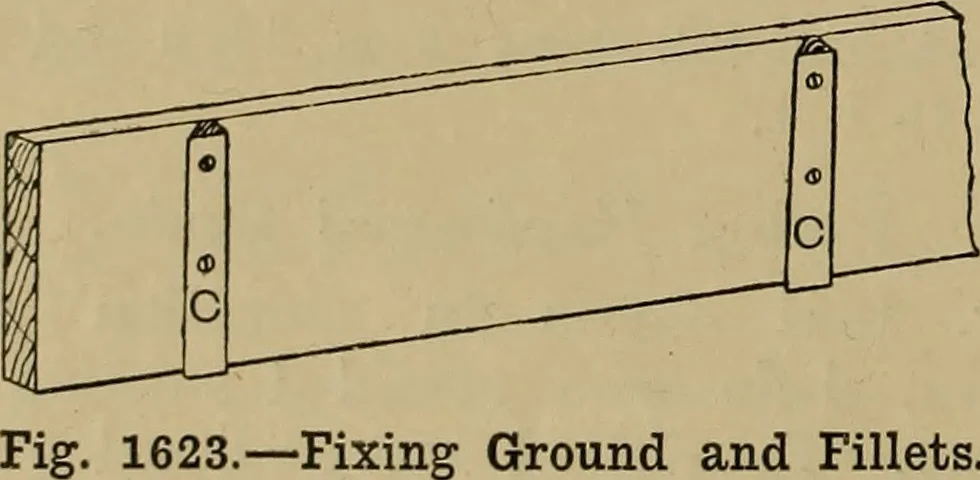

Fig. 1621.—Elevation of Panelled Dado. Fig. 1622.—Vertical Section. prepared and fitted into the mortices andthe capping fitted on, the fillets d (Fig. 1625)are cut, tapered in shape, and dovetailed asbefore. Skirting is prepared with a mould-ing tongued into the upper edge. Before … Fixing Ground and Fillets. gluing in the moulding permanently, theskirting should be grooved on the rear sideas shown in Fig. 1626, and fitted on to thefillets d. The skirting is prepared in thismanner to enable the grooves to be cuteasily and clean. As the piece forming theskirting slides on to…
Carpentry · Joinery
