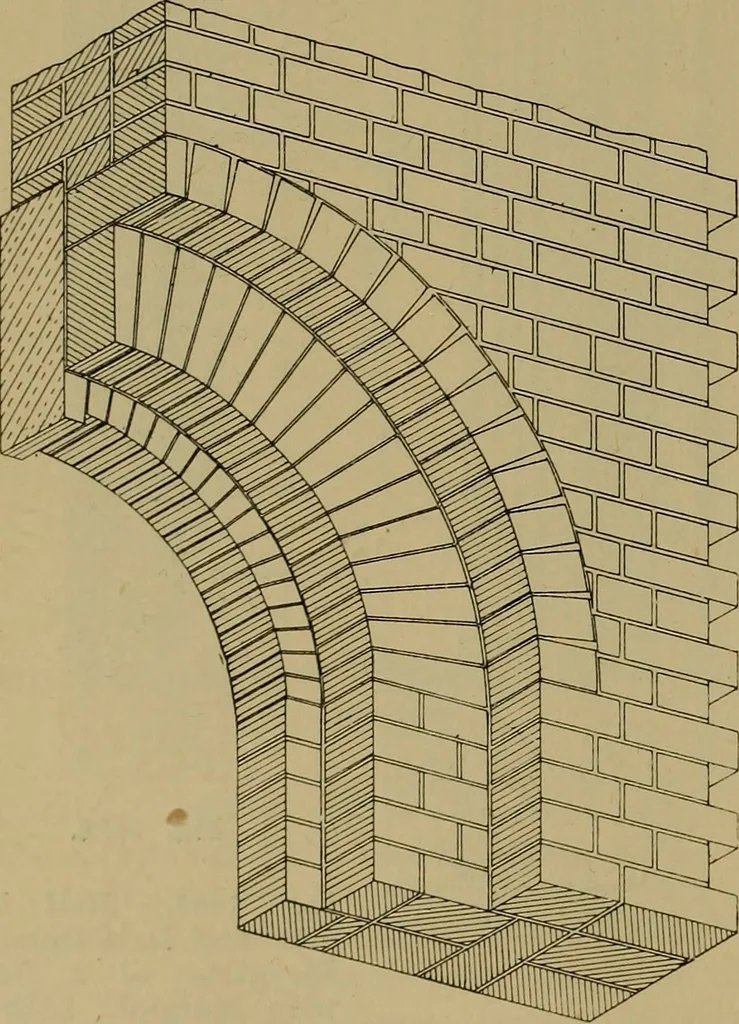

Fig. 1689.—Enlarged Detail of HorizontalSection at A (Fig. 1687). with boxing shutters 1J in. thick. As willbe seen, these are provided for coveringthe glass portion of the door, thus takingthe place of a lifting shutter, being more … Fig. 1690.—Conventional View of Brickwork atUpper Part of Opening. convenient. The head lining has a rail c(Fig. 1686) following the curved head ofthe door frame, but the outer edges ofthese linings are square. The curved rail of the head lining follows the splay all round,and hence its outer…
Carpentry · Joinery
